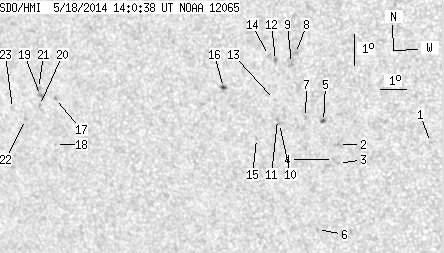

SDO HMI 2014-05-18 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.98 | 37.35 | 1.18 | 22.76 | -18.52 | 143.14 | -32.21 | 119.83 | 0.5825 | 291.3 | 229.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.36 | -19.75 | 150.66 | -24.68 | 127.69 | 0.4986 | 779.0 | 690.9 | |
| 0.00 | 3.87 | 0.00 | 2.27 | -19.75 | 147.35 | -27.99 | 124.59 | 0.5387 | 781.0 | 536.9 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -20.36 | 147.23 | -28.11 | 125.47 | 0.5445 | 404.0 | 345.4 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -20.23 | 147.08 | -28.27 | 125.12 | 0.5455 | 606.0 | 530.3 | |
| 0.81 | 1.89 | 0.47 | 1.11 | -19.02 | 146.95 | -28.40 | 123.04 | 0.5385 | 831.4 | 681.2 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -22.46 | 146.00 | -29.35 | 127.67 | 0.5744 | 721.0 | 611.8 | |
| 0.00 | 1.53 | 0.00 | 0.90 | -18.88 | 146.31 | -29.03 | 122.31 | 0.5454 | 867.0 | 685.2 | |
| 0.00 | 2.16 | 0.00 | 1.26 | -16.86 | 146.31 | -29.03 | 118.91 | 0.5326 | 861.0 | 758.9 | |
| 0.00 | 3.15 | 0.00 | 1.84 | -17.17 | 146.11 | -29.23 | 119.30 | 0.5371 | 818.0 | 721.1 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -19.05 | 145.32 | -30.03 | 121.82 | 0.5588 | 722.0 | 608.8 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -18.92 | 145.27 | -30.07 | 121.58 | 0.5586 | 709.0 | 558.6 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -17.06 | 145.55 | -29.80 | 118.71 | 0.5437 | 826.0 | 682.4 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -18.29 | 145.28 | -30.06 | 120.56 | 0.5545 | 576.0 | 401.4 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -16.90 | 145.32 | -30.02 | 118.28 | 0.5457 | 654.0 | 560.2 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -19.50 | 144.37 | -30.98 | 121.86 | 0.5734 | 436.0 | 312.8 | |
| 1.17 | 2.16 | 0.71 | 1.30 | -17.87 | 143.47 | -31.88 | 118.64 | 0.5749 | 856.5 | 771.0 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -18.06 | 136.85 | -38.49 | 115.34 | 0.6571 | -855.0 | -721.0 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -19.52 | 136.45 | -38.89 | 117.24 | 0.6679 | -642.0 | -512.6 | |
| 0.00 | 2.61 | 0.00 | 1.72 | -17.96 | 136.26 | -39.08 | 114.92 | 0.6636 | -802.0 | -694.0 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -18.27 | 136.14 | -39.21 | 115.32 | 0.6663 | -718.0 | -621.2 | |
| 0.00 | 2.34 | 0.00 | 1.54 | -17.73 | 136.24 | -39.11 | 114.59 | 0.6630 | -701.0 | -515.0 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -18.70 | 135.44 | -39.91 | 115.62 | 0.6763 | -607.0 | -547.8 | |
| 0.00 | 1.17 | 0.00 | 0.79 | -18.33 | 134.99 | -40.35 | 114.92 | 0.6800 | -513.0 | -502.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
