SDO HMI 2014-05-18 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 13.40 | 0.57 | 9.32 | -18.14 | 217.32 | 42.52 | 246.20 | 0.7043 | -609.7 | -547.5 | |
|
previous
or next observation for the same group /

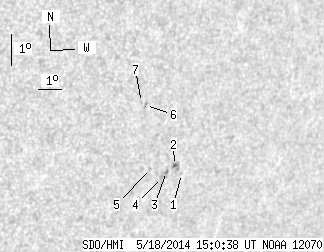

back to the solar disc SDO HMI 2014-05-18 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.51 | -18.67 | 218.26 | 43.47 | 245.83 | 0.7167 | -496.0 | -420.9 | |
| 0.81 | 4.49 | 0.57 | 3.16 | -18.42 | 217.88 | 43.08 | 246.02 | 0.7116 | -682.2 | -607.6 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -18.62 | 217.59 | 42.79 | 245.64 | 0.7090 | -645.0 | -666.6 | |
| 0.00 | 2.79 | 0.00 | 1.95 | -18.81 | 217.47 | 42.68 | 245.34 | 0.7084 | -662.0 | -591.5 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -18.54 | 216.87 | 42.07 | 245.48 | 0.7006 | -627.0 | -472.1 | |
| 0.00 | 2.25 | 0.00 | 1.52 | -16.57 | 216.10 | 41.31 | 247.94 | 0.6850 | -534.0 | -375.4 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -16.49 | 215.91 | 41.11 | 247.99 | 0.6824 | -653.0 | -581.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
