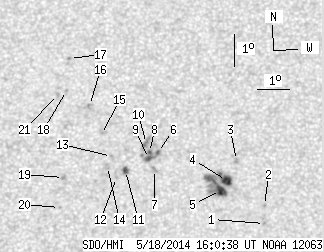

SDO HMI 2014-05-18 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.81 | 87.30 | 8.57 | 44.50 | 10.17 | 179.82 | 5.58 | 336.06 | 0.2388 | -219.5 | -348.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.60 | 8.48 | 182.41 | 8.17 | 322.96 | 0.2343 | -996.0 | -811.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 9.04 | 182.42 | 8.18 | 324.32 | 0.2421 | -927.0 | -646.7 | |
| 0.00 | 3.06 | 0.00 | 1.56 | 10.43 | 181.59 | 7.35 | 330.19 | 0.2542 | -750.0 | -604.6 | |
| 6.11 | 43.14 | 3.12 | 22.00 | 9.80 | 181.26 | 7.02 | 330.04 | 0.2423 | -1147.5 | -799.4 | |
| 6.11 | -4.00 | 3.12 | -4.00 | 9.49 | 181.07 | 6.83 | 330.07 | 0.2361 | -1226.8 | 999999 | |
| 0.54 | 10.16 | 0.28 | 5.18 | 10.67 | 179.14 | 4.90 | 339.43 | 0.2402 | -1071.3 | -391.2 | |
| 0.00 | 2.43 | 0.00 | 1.24 | 10.14 | 179.04 | 4.80 | 339.02 | 0.2311 | -849.0 | -661.0 | |
| 0.63 | -6.00 | 0.32 | -6.00 | 10.67 | 178.90 | 4.66 | 340.39 | 0.2387 | -936.7 | 999999 | |
| 1.62 | -6.00 | 0.82 | -6.00 | 10.48 | 178.86 | 4.62 | 340.25 | 0.2355 | 98.4 | 999999 | |
| 0.00 | 6.47 | 0.00 | 3.30 | 10.95 | 178.81 | 4.57 | 341.12 | 0.2427 | -967.0 | -610.2 | |
| 1.80 | 3.86 | 0.91 | 1.96 | 10.11 | 178.15 | 3.90 | 342.63 | 0.2256 | 866.9 | 637.7 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 9.89 | 177.87 | 3.62 | 343.53 | 0.2206 | 794.0 | 581.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.54 | 177.72 | 3.48 | 344.94 | 0.2307 | 596.0 | 528.5 | |
| 0.00 | 3.51 | 0.00 | 1.78 | 10.23 | 177.59 | 3.35 | 345.12 | 0.2250 | 678.0 | 687.2 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 11.23 | 177.42 | 3.18 | 346.89 | 0.2407 | 529.0 | 582.3 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 12.13 | 177.06 | 2.82 | 349.07 | 0.2545 | 780.0 | 676.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 13.61 | 176.45 | 2.21 | 352.20 | 0.2774 | 1012.0 | 775.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 12.60 | 176.35 | 2.11 | 352.04 | 0.2604 | 875.0 | 667.9 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 9.89 | 176.23 | 1.99 | 350.77 | 0.2144 | 1135.0 | 963.8 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.96 | 176.10 | 1.86 | 350.64 | 0.1983 | 743.0 | 582.4 | |
| 0.00 | 2.34 | 0.00 | 1.20 | 12.48 | 176.07 | 1.83 | 353.03 | 0.2576 | 880.0 | 630.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
