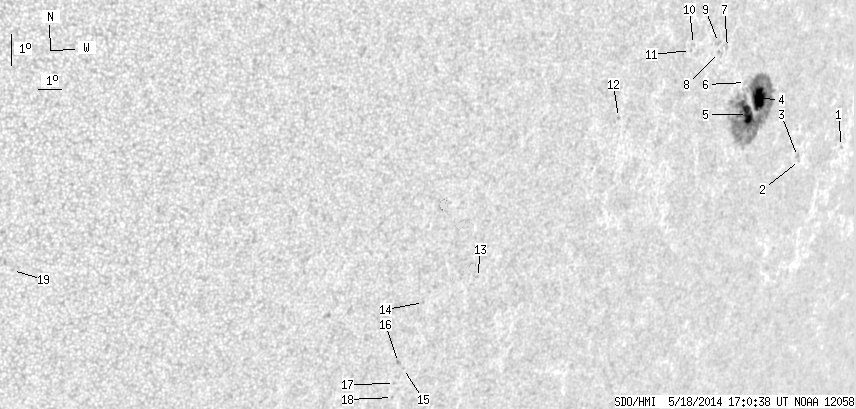

SDO HMI 2014-05-18 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.88 | 216.90 | 30.74 | 194.36 | -13.18 | 229.73 | 56.04 | 255.59 | 0.8353 | 414.2 | 237.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 1.16 | -14.14 | 236.02 | 62.34 | 255.24 | 0.8900 | 517.0 | 455.1 | |
| 0.00 | 0.63 | 0.00 | 0.63 | -14.66 | 233.52 | 59.84 | 254.40 | 0.8704 | 349.0 | 299.4 | |
| 0.00 | 1.71 | 0.00 | 1.70 | -14.54 | 233.34 | 59.66 | 254.51 | 0.8688 | 569.0 | 431.5 | |
| 21.03 | 195.30 | 19.15 | 176.63 | -12.83 | 230.35 | 56.66 | 256.16 | 0.8410 | 811.2 | 292.7 | |
| 12.85 | -4.00 | 11.59 | -4.00 | -13.34 | 229.90 | 56.22 | 255.50 | 0.8374 | 823.2 | 999999 | |
| 0.00 | 1.35 | 0.00 | 1.20 | -12.36 | 229.46 | 55.77 | 256.62 | 0.8323 | 331.0 | 320.1 | |
| 0.00 | 1.71 | 0.00 | 1.46 | -11.32 | 228.16 | 54.48 | 257.73 | 0.8189 | -225.0 | -232.2 | |
| 0.00 | 1.53 | 0.00 | 1.30 | -11.49 | 227.78 | 54.10 | 257.48 | 0.8153 | -698.0 | -456.1 | |
| 0.00 | 2.61 | 0.00 | 2.21 | -11.19 | 227.65 | 53.96 | 257.84 | 0.8136 | -590.0 | -496.4 | |
| 0.00 | 1.71 | 0.00 | 1.41 | -11.29 | 226.37 | 52.69 | 257.57 | 0.8009 | -484.0 | -390.8 | |
| 0.00 | 1.17 | 0.00 | 0.96 | -11.47 | 226.27 | 52.58 | 257.32 | 0.8000 | -408.0 | -415.7 | |
| 0.00 | 1.17 | 0.00 | 0.91 | -13.64 | 223.28 | 49.60 | 254.12 | 0.7717 | -500.0 | -466.0 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -18.79 | 218.32 | 44.63 | 246.07 | 0.7299 | -366.0 | -364.3 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -19.64 | 216.20 | 42.51 | 244.15 | 0.7095 | -633.0 | -444.4 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -21.77 | 216.05 | 42.36 | 241.25 | 0.7161 | -682.0 | -567.1 | |
| 0.00 | 1.44 | 0.00 | 1.01 | -21.58 | 215.76 | 42.07 | 241.37 | 0.7122 | -709.0 | -573.9 | |
| 0.00 | 1.17 | 0.00 | 0.83 | -22.26 | 215.83 | 42.14 | 240.51 | 0.7157 | -534.0 | -353.2 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -22.71 | 215.91 | 42.22 | 239.95 | 0.7185 | -575.0 | -466.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -18.96 | 199.95 | 26.26 | 235.19 | 0.5117 | -665.0 | -406.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
