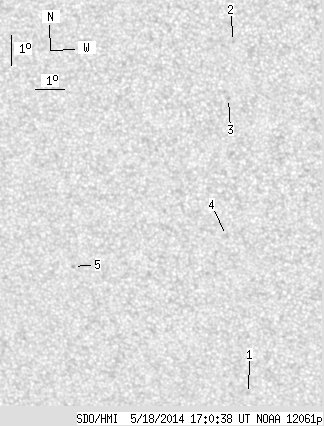

SDO HMI 2014-05-18 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.66 | 0.00 | 3.73 | -26.03 | 158.25 | -15.44 | 149.12 | 0.4721 | -747.8 | -553.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.89 | -31.28 | 159.17 | -14.52 | 156.21 | 0.5332 | -629.0 | -454.5 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.64 | 160.06 | -13.63 | 143.47 | 0.3744 | -938.0 | -799.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -21.46 | 159.72 | -13.97 | 145.74 | 0.4007 | -803.0 | -618.3 | |
| 0.00 | 2.07 | 0.00 | 1.15 | -25.92 | 159.15 | -14.54 | 150.70 | 0.4632 | -640.0 | -472.7 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -26.89 | 153.57 | -20.12 | 143.76 | 0.5211 | -729.0 | -609.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
