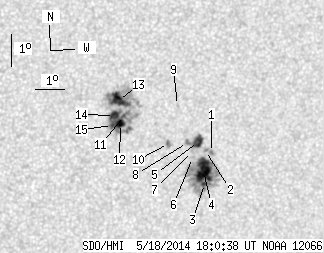

SDO HMI 2014-05-18 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.99 | 206.72 | 35.21 | 113.71 | -16.63 | 194.74 | 21.60 | 234.59 | 0.4343 | 217.8 | -4.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.00 | -17.01 | 196.47 | 23.33 | 235.79 | 0.4599 | 732.0 | 611.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -16.95 | 196.25 | 23.12 | 235.68 | 0.4566 | 946.0 | 765.4 | |
| 1.80 | 84.57 | 1.01 | 47.22 | -17.99 | 196.35 | 23.22 | 233.86 | 0.4663 | 826.6 | 406.9 | |
| 25.25 | -3.00 | 14.09 | -3.00 | -17.58 | 196.26 | 23.13 | 234.51 | 0.4618 | 1125.6 | 999999 | |
| 8.00 | 10.87 | 4.43 | 6.03 | -16.67 | 195.97 | 22.84 | 235.91 | 0.4509 | 1094.9 | 827.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -17.17 | 195.83 | 22.70 | 234.80 | 0.4531 | 586.0 | 534.0 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -16.99 | 195.81 | 22.67 | 235.13 | 0.4512 | 501.0 | 509.5 | |
| 0.00 | 2.52 | 0.00 | 1.39 | -16.71 | 195.60 | 22.47 | 235.44 | 0.4463 | 962.0 | 856.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -15.56 | 195.12 | 21.99 | 237.19 | 0.4310 | 796.0 | 584.2 | |
| 0.00 | 3.51 | 0.00 | 1.93 | -16.75 | 194.96 | 21.82 | 234.63 | 0.4384 | 1123.0 | 863.9 | |
| 0.99 | 98.77 | 0.54 | 53.55 | -15.89 | 193.37 | 20.24 | 234.44 | 0.4107 | -871.4 | -522.9 | |
| 6.20 | -11.00 | 3.37 | -11.00 | -16.14 | 193.26 | 20.13 | 233.79 | 0.4114 | -1060.1 | 999999 | |
| 13.93 | -11.00 | 7.54 | -11.00 | -15.43 | 193.12 | 19.99 | 235.10 | 0.4035 | -1197.6 | 999999 | |
| 5.93 | -11.00 | 3.21 | -11.00 | -15.90 | 193.04 | 19.90 | 234.01 | 0.4064 | -1224.7 | 999999 | |
| 1.89 | -11.00 | 1.02 | -11.00 | -16.21 | 193.00 | 19.87 | 233.32 | 0.4087 | -973.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
