SDO HMI 2014-05-18 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.68 | 221.37 | 33.67 | 122.91 | -16.69 | 194.92 | 22.90 | 235.90 | 0.4516 | 150.8 | 58.0 | |
|
previous
or next observation for the same group /

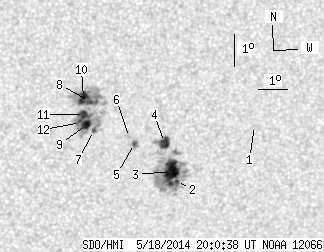

back to the solar disc SDO HMI 2014-05-18 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.46 | -16.13 | 199.05 | 27.02 | 240.81 | 0.5020 | -504.0 | -430.1 | |
| 1.71 | 119.90 | 0.96 | 67.44 | -17.93 | 196.56 | 24.54 | 235.32 | 0.4825 | 575.1 | 480.5 | |
| 23.55 | -2.00 | 13.26 | -2.00 | -17.62 | 196.34 | 24.32 | 235.66 | 0.4773 | 1101.5 | 999999 | |
| 8.45 | -2.00 | 4.72 | -2.00 | -16.71 | 195.97 | 23.95 | 236.97 | 0.4656 | 1057.3 | 999999 | |
| 1.44 | 4.40 | 0.80 | 2.45 | -16.76 | 194.94 | 22.92 | 235.82 | 0.4526 | 978.0 | 740.4 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -16.57 | 194.75 | 22.72 | 235.96 | 0.4486 | 855.0 | 714.4 | |
| 1.35 | 95.45 | 0.74 | 52.11 | -16.37 | 193.49 | 21.47 | 234.95 | 0.4308 | -644.6 | -509.8 | |
| 2.79 | -7.00 | 1.52 | -7.00 | -15.47 | 193.26 | 21.24 | 236.51 | 0.4204 | -1160.0 | 999999 | |
| 6.38 | -7.00 | 3.49 | -7.00 | -16.19 | 193.24 | 21.21 | 235.02 | 0.4259 | -1034.1 | 999999 | |
| 8.45 | -7.00 | 4.60 | -7.00 | -15.35 | 193.04 | 21.02 | 236.51 | 0.4165 | -1232.1 | 999999 | |
| 5.57 | -7.00 | 3.04 | -7.00 | -15.88 | 193.10 | 21.08 | 235.48 | 0.4216 | -1249.1 | 999999 | |
| 0.99 | -7.00 | 0.54 | -7.00 | -16.13 | 193.03 | 21.00 | 234.89 | 0.4227 | -1085.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
