SDO HMI 2014-05-18 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.43 | 41.58 | 1.45 | 24.45 | -17.75 | 142.64 | -28.83 | 121.07 | 0.5360 | 206.8 | 185.8 | |
|
previous
or next observation for the same group /

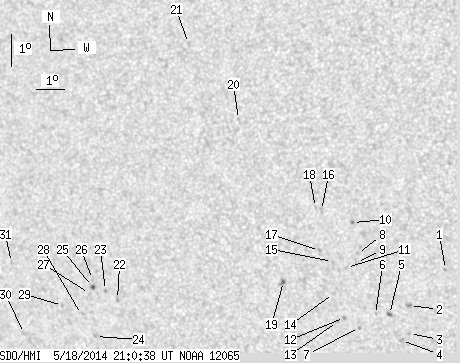

back to the solar disc SDO HMI 2014-05-18 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.55 | -17.53 | 149.28 | -22.18 | 126.47 | 0.4496 | 694.0 | 610.5 | |
| 0.00 | 2.34 | 0.00 | 1.32 | -18.64 | 147.88 | -23.59 | 126.95 | 0.4763 | 941.0 | 779.2 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -19.53 | 147.74 | -23.72 | 128.35 | 0.4854 | 373.0 | 391.9 | |
| 0.00 | 2.61 | 0.00 | 1.48 | -19.75 | 147.43 | -24.04 | 128.38 | 0.4911 | 875.0 | 634.6 | |
| 0.45 | 2.07 | 0.25 | 1.17 | -18.92 | 147.14 | -24.33 | 126.64 | 0.4877 | 836.4 | 686.8 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -18.91 | 146.64 | -24.82 | 126.13 | 0.4937 | 718.0 | 549.4 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -19.31 | 146.01 | -25.46 | 126.19 | 0.5046 | 724.0 | 616.9 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -16.98 | 146.31 | -25.16 | 122.35 | 0.4833 | 769.0 | 670.0 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -17.26 | 146.23 | -25.24 | 122.80 | 0.4863 | 772.0 | 652.9 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -16.00 | 146.27 | -25.20 | 120.51 | 0.4770 | 840.0 | 680.0 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -17.41 | 145.86 | -25.61 | 122.72 | 0.4923 | 756.0 | 622.2 | |
| 0.00 | 1.71 | 0.00 | 0.98 | -18.98 | 145.53 | -25.94 | 125.18 | 0.5080 | 846.0 | 637.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -19.11 | 145.26 | -26.21 | 125.13 | 0.5123 | 653.0 | 533.7 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -18.22 | 145.27 | -26.20 | 123.61 | 0.5056 | 738.0 | 559.6 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -17.21 | 145.39 | -26.08 | 121.95 | 0.4968 | 689.0 | 597.6 | |
| 0.00 | 2.16 | 0.00 | 1.22 | -15.61 | 145.24 | -26.23 | 118.88 | 0.4881 | -829.0 | -561.8 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -16.86 | 144.98 | -26.48 | 120.96 | 0.4997 | 699.0 | 526.7 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -15.51 | 145.04 | -26.43 | 118.54 | 0.4901 | -513.0 | -457.9 | |
| 0.90 | 3.42 | 0.52 | 1.99 | -17.81 | 143.54 | -27.92 | 121.42 | 0.5246 | 961.3 | 621.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -12.74 | 142.69 | -28.78 | 111.67 | 0.5073 | 742.0 | 604.8 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -10.37 | 141.19 | -30.28 | 106.44 | 0.5192 | 561.0 | 396.8 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -18.25 | 137.26 | -34.21 | 117.83 | 0.6060 | -690.0 | -664.5 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -17.95 | 136.86 | -34.60 | 117.16 | 0.6094 | -833.0 | -715.3 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -19.40 | 136.13 | -35.34 | 118.92 | 0.6256 | -765.0 | -581.8 | |
| 1.08 | 1.80 | 0.68 | 1.13 | -17.82 | 136.39 | -35.08 | 116.69 | 0.6146 | -896.6 | -799.8 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -17.60 | 136.44 | -35.03 | 116.38 | 0.6129 | -621.0 | -551.4 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -18.03 | 136.22 | -35.25 | 116.93 | 0.6177 | -643.0 | -600.0 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -18.69 | 135.75 | -35.72 | 117.66 | 0.6266 | -526.0 | -500.5 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -18.39 | 135.07 | -36.40 | 116.85 | 0.6334 | -561.0 | -472.2 | |
| 0.00 | 2.16 | 0.00 | 1.42 | -19.24 | 133.32 | -38.15 | 117.21 | 0.6581 | -553.0 | -396.6 | |
| 0.00 | 0.72 | 0.00 | 0.47 | -16.99 | 133.37 | -38.10 | 113.96 | 0.6480 | -495.0 | -439.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
