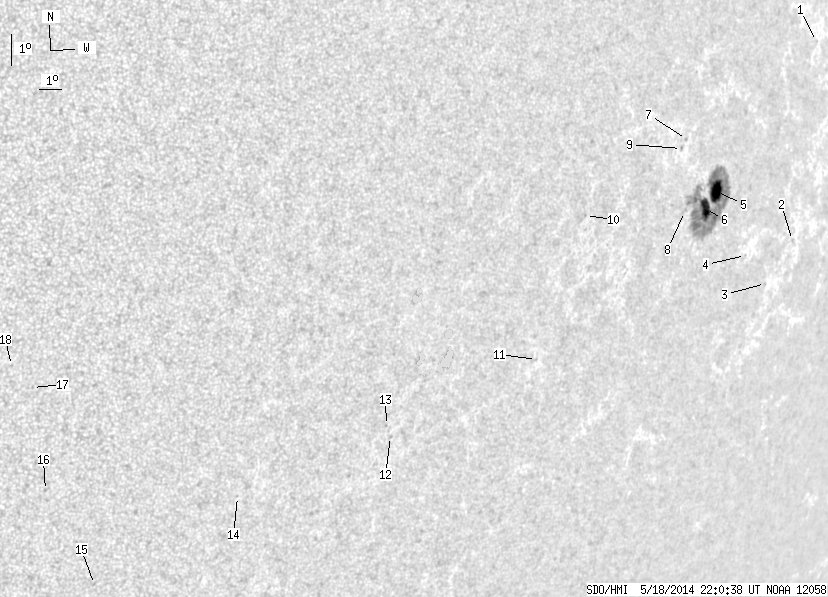

SDO HMI 2014-05-18 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.98 | 187.45 | 33.25 | 180.79 | -13.29 | 229.58 | 58.67 | 255.68 | 0.8587 | 391.0 | 220.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.31 | -7.98 | 235.39 | 64.47 | 262.23 | 0.9037 | 290.0 | 267.0 | |
| 0.00 | 1.17 | 0.00 | 1.40 | -14.10 | 236.17 | 65.26 | 255.52 | 0.9115 | 512.0 | 447.2 | |
| 0.00 | 0.63 | 0.00 | 0.72 | -15.49 | 234.95 | 64.04 | 253.89 | 0.9036 | 382.0 | 422.1 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -14.67 | 233.11 | 62.20 | 254.62 | 0.8894 | 509.0 | 469.0 | |
| 18.70 | 171.07 | 18.39 | 167.17 | -12.77 | 230.40 | 59.49 | 256.52 | 0.8660 | 661.9 | 253.6 | |
| 15.28 | -5.00 | 14.86 | -5.00 | -13.34 | 229.95 | 59.04 | 255.81 | 0.8626 | 707.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.07 | -11.24 | 228.09 | 57.17 | 258.10 | 0.8444 | -348.0 | -281.0 | |
| 0.00 | 2.25 | 0.00 | 2.11 | -13.44 | 228.73 | 57.82 | 255.56 | 0.8521 | 479.0 | 493.0 | |
| 0.00 | 1.17 | 0.00 | 1.07 | -11.52 | 227.89 | 56.98 | 257.74 | 0.8428 | -455.0 | -421.8 | |
| 0.00 | 0.99 | 0.00 | 0.82 | -13.73 | 223.39 | 52.47 | 254.48 | 0.8018 | -383.0 | -335.8 | |
| 0.00 | 1.26 | 0.00 | 1.04 | -18.28 | 222.53 | 51.62 | 248.70 | 0.8011 | -420.0 | -365.5 | |
| 0.00 | 1.35 | 0.00 | 1.00 | -20.91 | 216.45 | 45.54 | 243.61 | 0.7466 | -282.0 | -316.7 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -20.56 | 216.13 | 45.22 | 243.94 | 0.7421 | -639.0 | -553.1 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -23.00 | 210.41 | 39.49 | 238.24 | 0.6908 | -636.0 | -542.6 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -26.00 | 205.45 | 34.54 | 231.26 | 0.6556 | -524.0 | -347.0 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -22.96 | 202.60 | 31.68 | 233.41 | 0.6045 | -740.0 | -556.5 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -19.67 | 201.33 | 30.42 | 237.44 | 0.5678 | -597.0 | -499.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -18.99 | 200.41 | 29.50 | 237.84 | 0.5521 | -572.0 | -491.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
