SDO HMI 2014-05-18 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 15.11 | 0.80 | 8.47 | 8.52 | 196.64 | 25.73 | 293.20 | 0.4686 | -5.0 | -215.4 | |
|
previous
or next observation for the same group /

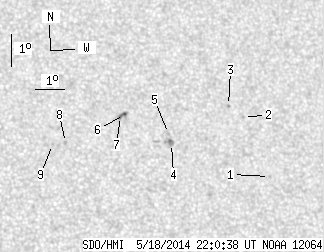

back to the solar disc SDO HMI 2014-05-18 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.52 | 7.21 | 200.44 | 29.52 | 288.05 | 0.5162 | -583.0 | -524.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 9.01 | 199.67 | 28.76 | 291.85 | 0.5140 | -556.0 | -417.6 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 9.37 | 199.18 | 28.26 | 292.86 | 0.5090 | -775.0 | -665.2 | |
| 0.00 | 3.87 | 0.00 | 2.17 | 8.16 | 197.11 | 26.20 | 292.03 | 0.4733 | -945.0 | -786.2 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 8.47 | 197.03 | 26.12 | 292.70 | 0.4739 | -665.0 | -505.2 | |
| 0.63 | 4.40 | 0.35 | 2.45 | 9.03 | 195.58 | 24.66 | 295.00 | 0.4566 | 730.3 | 515.0 | |
| 0.81 | -6.00 | 0.45 | -6.00 | 8.97 | 195.44 | 24.52 | 295.00 | 0.4542 | 778.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 8.14 | 193.54 | 22.63 | 294.98 | 0.4219 | 651.0 | 523.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 8.07 | 193.10 | 22.19 | 295.25 | 0.4152 | 709.0 | 549.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
