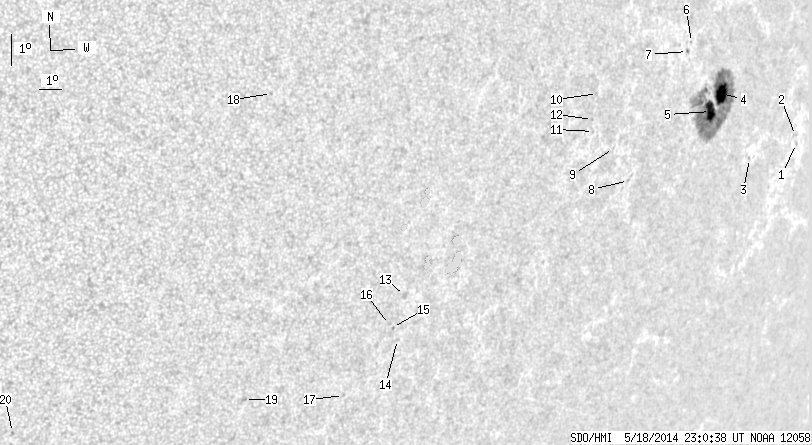

SDO HMI 2014-05-18 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.28 | 195.56 | 31.13 | 191.01 | -13.35 | 229.50 | 59.14 | 255.68 | 0.8627 | 314.5 | 219.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-18 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 1.32 | -14.11 | 236.24 | 65.88 | 255.56 | 0.9158 | 467.0 | 417.2 | |
| 0.00 | 2.07 | 0.00 | 2.50 | -13.86 | 236.03 | 65.67 | 255.81 | 0.9142 | 500.0 | 424.8 | |
| 0.00 | 1.08 | 0.00 | 1.18 | -14.68 | 233.12 | 62.76 | 254.67 | 0.8937 | 441.0 | 392.4 | |
| 16.99 | 173.78 | 17.00 | 172.47 | -12.74 | 230.41 | 60.05 | 256.60 | 0.8707 | 616.8 | 267.7 | |
| 14.29 | -4.00 | 14.13 | -4.00 | -13.32 | 229.95 | 59.59 | 255.90 | 0.8673 | 683.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.01 | -11.24 | 228.06 | 57.70 | 258.13 | 0.8492 | -362.0 | -292.9 | |
| 0.00 | 1.53 | 0.00 | 1.42 | -11.52 | 227.92 | 57.56 | 257.79 | 0.8482 | -386.0 | -322.6 | |
| 0.00 | 0.54 | 0.00 | 0.48 | -15.60 | 226.04 | 55.68 | 252.73 | 0.8352 | -273.0 | -200.8 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -14.63 | 224.84 | 54.48 | 253.70 | 0.8227 | -484.0 | -400.3 | |
| 0.00 | 1.26 | 0.00 | 1.05 | -12.96 | 223.43 | 53.07 | 255.52 | 0.8067 | -462.0 | -328.9 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -14.14 | 223.60 | 53.24 | 254.10 | 0.8099 | -476.0 | -452.5 | |
| 0.00 | 0.81 | 0.00 | 0.68 | -13.77 | 223.42 | 53.06 | 254.53 | 0.8077 | -491.0 | -400.1 | |
| 0.00 | 3.33 | 0.00 | 2.46 | -19.51 | 216.21 | 45.85 | 245.52 | 0.7454 | -470.0 | -339.2 | |
| 0.00 | 1.26 | 0.00 | 0.94 | -20.92 | 216.42 | 46.06 | 243.78 | 0.7521 | -154.0 | -248.8 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -20.54 | 216.04 | 45.68 | 244.13 | 0.7469 | -294.0 | -441.2 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -20.45 | 215.86 | 45.50 | 244.18 | 0.7447 | -335.0 | -397.8 | |
| 0.00 | 0.99 | 0.00 | 0.73 | -22.77 | 214.66 | 44.30 | 240.73 | 0.7405 | -291.0 | -242.3 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -13.35 | 208.86 | 38.50 | 251.66 | 0.6404 | -476.0 | -389.4 | |
| 0.00 | 1.89 | 0.00 | 1.30 | -23.01 | 210.33 | 39.97 | 238.46 | 0.6961 | -445.0 | -358.0 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -24.27 | 201.27 | 30.91 | 230.94 | 0.6053 | -701.0 | -616.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
