SDO HMI 2014-05-18 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.26 | 0.00 | 5.41 | -20.14 | 161.80 | -8.56 | 154.08 | 0.3454 | -623.0 | -498.1 | |
|
previous
or next observation for the same group /

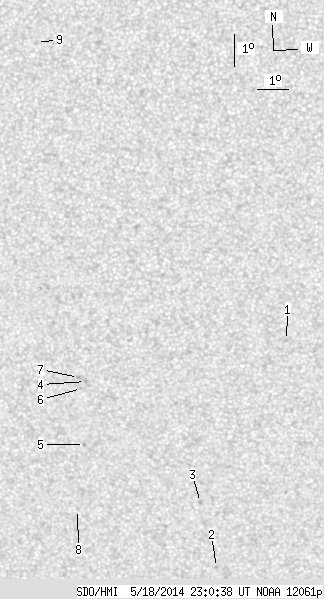

back to the solar disc SDO HMI 2014-05-18 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.70 | -18.26 | 166.58 | -3.78 | 167.21 | 0.2842 | -813.0 | -530.1 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -25.57 | 164.00 | -6.36 | 165.85 | 0.4102 | -846.0 | -661.5 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -23.44 | 163.58 | -6.78 | 163.33 | 0.3791 | -706.0 | -601.6 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -19.52 | 160.03 | -10.33 | 150.40 | 0.3437 | -916.0 | -657.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -21.54 | 159.85 | -10.51 | 152.86 | 0.3734 | -839.0 | -736.4 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -19.75 | 159.88 | -10.48 | 150.40 | 0.3480 | -741.0 | -586.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -19.40 | 159.81 | -10.55 | 149.68 | 0.3437 | -853.0 | -740.7 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -23.64 | 159.45 | -10.91 | 154.61 | 0.4061 | -614.0 | -484.4 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -8.99 | 158.99 | -11.37 | 121.24 | 0.2288 | 721.0 | 578.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
