SDO HMI 2014-05-18 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.41 | 42.79 | 10.04 | 32.22 | -17.96 | 217.53 | 47.17 | 247.95 | 0.7549 | -124.9 | -125.1 | |
|
previous
or next observation for the same group /

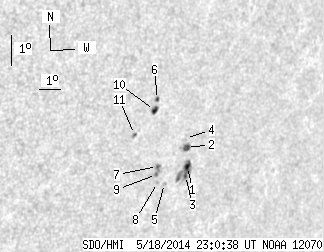

back to the solar disc SDO HMI 2014-05-18 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.51 | 19.60 | 2.68 | 14.97 | -18.28 | 218.26 | 47.90 | 247.74 | 0.7635 | 531.4 | 16.3 | |
| 3.06 | 5.48 | 2.32 | 4.16 | -17.68 | 217.99 | 47.64 | 248.43 | 0.7593 | 641.2 | 474.8 | |
| 1.26 | -1.00 | 0.96 | -1.00 | -18.57 | 218.26 | 47.91 | 247.37 | 0.7644 | -328.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -17.40 | 217.85 | 47.49 | 248.75 | 0.7570 | 324.0 | 346.6 | |
| 0.00 | 1.26 | 0.00 | 0.95 | -18.84 | 217.37 | 47.01 | 246.75 | 0.7557 | -628.0 | -535.4 | |
| 0.99 | 1.89 | 0.72 | 1.38 | -16.22 | 216.17 | 45.81 | 249.83 | 0.7358 | -434.5 | -442.5 | |
| 0.81 | 5.21 | 0.60 | 3.89 | -18.32 | 216.85 | 46.49 | 247.27 | 0.7488 | -554.0 | -539.9 | |
| 0.00 | 1.44 | 0.00 | 1.08 | -18.82 | 217.03 | 46.67 | 246.68 | 0.7521 | -674.0 | -580.3 | |
| 0.54 | -7.00 | 0.40 | -7.00 | -18.57 | 216.89 | 46.54 | 246.96 | 0.7499 | -700.8 | 999999 | |
| 2.70 | 4.85 | 1.97 | 3.54 | -16.57 | 216.14 | 45.78 | 249.36 | 0.7363 | -584.0 | -377.2 | |
| 0.54 | 2.07 | 0.39 | 1.50 | -17.34 | 215.47 | 45.11 | 248.14 | 0.7310 | -518.0 | -464.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
