SDO HMI 2014-05-19 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.61 | 39.38 | 8.81 | 29.96 | -17.97 | 217.57 | 47.76 | 248.10 | 0.7612 | 3.5 | -98.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

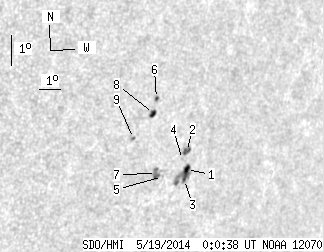

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.87 | 17.44 | 2.99 | 13.47 | -18.30 | 218.29 | 48.48 | 247.87 | 0.7697 | 495.1 | 88.2 | |
| 2.88 | 5.39 | 2.21 | 4.14 | -17.73 | 218.08 | 48.27 | 248.53 | 0.7661 | 616.7 | 463.8 | |
| 0.81 | -1.00 | 0.63 | -1.00 | -18.62 | 218.31 | 48.50 | 247.47 | 0.7707 | -362.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.62 | -17.99 | 217.98 | 48.17 | 248.18 | 0.7657 | 356.0 | 269.1 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -18.55 | 217.23 | 47.42 | 247.25 | 0.7593 | -299.0 | -227.7 | |
| 0.99 | 1.71 | 0.73 | 1.26 | -16.12 | 216.14 | 46.33 | 250.11 | 0.7413 | -411.1 | -351.6 | |
| 0.00 | 8.18 | 0.00 | 6.17 | -18.46 | 216.91 | 47.11 | 247.27 | 0.7557 | -648.0 | -503.5 | |
| 2.70 | 4.68 | 1.99 | 3.44 | -16.59 | 216.14 | 46.34 | 249.49 | 0.7425 | -484.0 | -318.1 | |
| 0.36 | 0.90 | 0.26 | 0.66 | -17.39 | 215.48 | 45.68 | 248.23 | 0.7374 | -568.2 | -569.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
