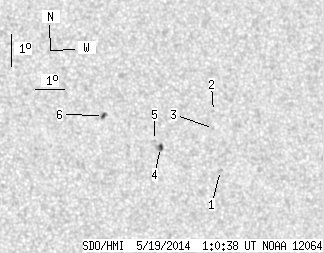

SDO HMI 2014-05-19 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.33 | 11.52 | 1.89 | 6.60 | 8.43 | 197.55 | 28.29 | 291.11 | 0.5045 | -488.2 | -400.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.98 | 0.00 | 1.15 | 7.52 | 199.37 | 30.11 | 288.27 | 0.5259 | -649.0 | -459.2 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 9.34 | 199.28 | 30.02 | 291.59 | 0.5331 | -634.0 | -550.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 8.81 | 199.23 | 29.98 | 290.69 | 0.5298 | -612.0 | -517.7 | |
| 1.98 | 4.50 | 1.13 | 2.57 | 8.19 | 197.31 | 28.06 | 290.75 | 0.4999 | -800.0 | -738.5 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 8.40 | 197.12 | 27.87 | 291.28 | 0.4983 | -674.0 | -547.7 | |
| 1.35 | 2.61 | 0.76 | 1.47 | 9.14 | 195.42 | 26.17 | 293.94 | 0.4784 | 786.1 | 651.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
