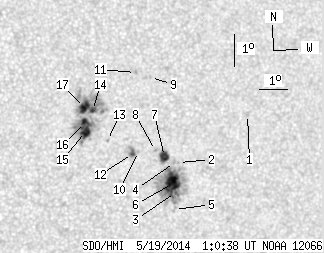

SDO HMI 2014-05-19 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.54 | 210.71 | 33.23 | 119.57 | -16.75 | 194.99 | 25.73 | 238.54 | 0.4891 | 209.8 | 32.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.26 | -15.54 | 198.88 | 29.63 | 243.74 | 0.5332 | 592.0 | 383.5 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -17.08 | 196.64 | 27.39 | 239.37 | 0.5130 | 575.0 | 502.6 | |
| 0.27 | 88.04 | 0.16 | 50.85 | -18.02 | 196.68 | 27.43 | 237.77 | 0.5199 | 718.0 | 411.4 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -17.08 | 196.50 | 27.24 | 239.25 | 0.5112 | 761.0 | 628.3 | |
| 0.00 | 2.25 | 0.00 | 1.31 | -18.56 | 196.74 | 27.49 | 236.90 | 0.5244 | 385.0 | 293.5 | |
| 23.47 | -3.00 | 13.55 | -3.00 | -17.74 | 196.53 | 27.28 | 238.12 | 0.5161 | 1026.8 | 999999 | |
| 6.74 | 9.35 | 3.87 | 5.36 | -16.90 | 196.11 | 26.86 | 239.25 | 0.5050 | 1020.5 | 764.9 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -16.71 | 195.76 | 26.51 | 239.29 | 0.4992 | 827.0 | 704.8 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -14.44 | 195.28 | 26.02 | 243.13 | 0.4783 | 740.0 | 559.9 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -16.75 | 195.17 | 25.92 | 238.70 | 0.4918 | 710.0 | 536.0 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -14.30 | 194.74 | 25.48 | 242.98 | 0.4699 | 737.0 | 595.7 | |
| 1.89 | 5.85 | 1.07 | 3.31 | -16.82 | 194.97 | 25.71 | 238.40 | 0.4896 | 937.5 | 788.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -16.43 | 194.04 | 24.78 | 238.27 | 0.4747 | -497.0 | -413.0 | |
| 2.70 | 95.32 | 1.50 | 53.08 | -15.50 | 193.40 | 24.14 | 239.44 | 0.4596 | -917.7 | -476.4 | |
| 9.80 | -14.00 | 5.47 | -14.00 | -16.16 | 193.24 | 23.98 | 238.01 | 0.4622 | -1007.5 | 999999 | |
| 5.22 | -14.00 | 2.91 | -14.00 | -15.88 | 193.20 | 23.95 | 238.52 | 0.4597 | -1062.9 | 999999 | |
| 8.45 | -14.00 | 4.70 | -14.00 | -15.41 | 193.11 | 23.86 | 239.34 | 0.4551 | -1165.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
