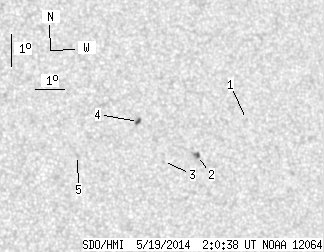

SDO HMI 2014-05-19 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.15 | 10.35 | 1.80 | 5.87 | 8.45 | 195.93 | 27.22 | 291.86 | 0.4894 | -183.8 | -99.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.16 | 9.32 | 199.22 | 30.52 | 291.25 | 0.5398 | -574.0 | -623.7 | |
| 1.62 | 3.96 | 0.93 | 2.27 | 8.17 | 197.39 | 28.69 | 290.31 | 0.5087 | -833.5 | -744.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 7.97 | 196.19 | 27.49 | 290.69 | 0.4906 | -848.0 | -633.0 | |
| 1.53 | 2.88 | 0.87 | 1.63 | 9.19 | 195.43 | 26.72 | 293.59 | 0.4864 | 781.7 | 607.1 | |
| 0.00 | 2.16 | 0.00 | 1.20 | 8.11 | 193.27 | 24.56 | 293.14 | 0.4494 | 635.0 | 518.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
