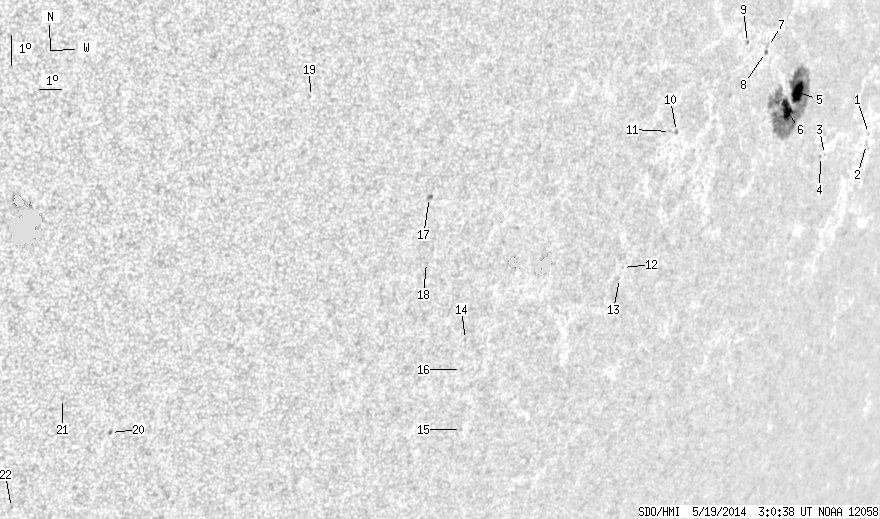

SDO HMI 2014-05-19 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.67 | 183.95 | 32.60 | 191.07 | -13.35 | 229.28 | 61.12 | 255.82 | 0.8790 | 277.1 | 202.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 03:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 1.20 | -13.80 | 236.30 | 68.15 | 256.02 | 0.9304 | 269.0 | 210.0 | |
| 0.00 | 0.72 | 0.00 | 0.97 | -14.15 | 236.34 | 68.19 | 255.65 | 0.9308 | 445.0 | 384.4 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -14.56 | 233.24 | 65.09 | 254.98 | 0.9106 | 313.0 | 268.3 | |
| 0.00 | 1.17 | 0.00 | 1.38 | -14.64 | 232.98 | 64.83 | 254.88 | 0.9088 | 506.0 | 411.2 | |
| 14.48 | 161.63 | 15.52 | 171.63 | -12.73 | 230.41 | 62.26 | 256.80 | 0.8887 | 604.9 | 264.3 | |
| 15.65 | -5.00 | 16.55 | -5.00 | -13.30 | 229.93 | 61.77 | 256.11 | 0.8852 | 635.7 | 999999 | |
| 0.00 | 2.34 | 0.00 | 2.32 | -11.38 | 228.01 | 59.86 | 258.14 | 0.8683 | -219.0 | -253.6 | |
| 0.54 | 1.44 | 0.53 | 1.42 | -11.57 | 227.89 | 59.74 | 257.91 | 0.8674 | -377.3 | -316.5 | |
| 0.00 | 1.35 | 0.00 | 1.29 | -11.30 | 226.71 | 58.56 | 258.12 | 0.8570 | -333.0 | -322.1 | |
| 0.00 | 1.71 | 0.00 | 1.52 | -14.15 | 223.62 | 55.46 | 254.40 | 0.8315 | -506.0 | -430.8 | |
| 0.00 | 0.99 | 0.00 | 0.87 | -14.16 | 223.29 | 55.14 | 254.34 | 0.8284 | -592.0 | -542.4 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -18.47 | 222.43 | 54.28 | 249.03 | 0.8268 | -225.0 | -318.0 | |
| 0.00 | 0.54 | 0.00 | 0.47 | -18.82 | 222.43 | 54.27 | 248.61 | 0.8274 | -493.0 | -416.5 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -20.97 | 215.47 | 47.32 | 244.12 | 0.7653 | -521.0 | -407.6 | |
| 0.00 | 0.99 | 0.00 | 0.79 | -23.87 | 216.60 | 48.45 | 240.91 | 0.7854 | -453.0 | -369.7 | |
| 0.00 | 1.44 | 0.00 | 1.11 | -21.93 | 215.69 | 47.54 | 242.98 | 0.7705 | -285.0 | -255.4 | |
| 0.00 | 2.70 | 0.00 | 1.91 | -16.53 | 212.27 | 44.12 | 248.88 | 0.7177 | -786.0 | -614.9 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -18.57 | 212.76 | 44.61 | 246.30 | 0.7293 | -189.0 | -309.5 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -13.52 | 206.57 | 38.41 | 251.34 | 0.6399 | -647.0 | -537.3 | |
| 0.00 | 1.53 | 0.00 | 0.97 | -24.31 | 201.27 | 33.12 | 232.52 | 0.6298 | -671.0 | -559.9 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -23.24 | 199.10 | 30.95 | 232.41 | 0.5985 | -452.0 | -327.9 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -26.86 | 198.11 | 29.96 | 226.58 | 0.6155 | -573.0 | -505.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
