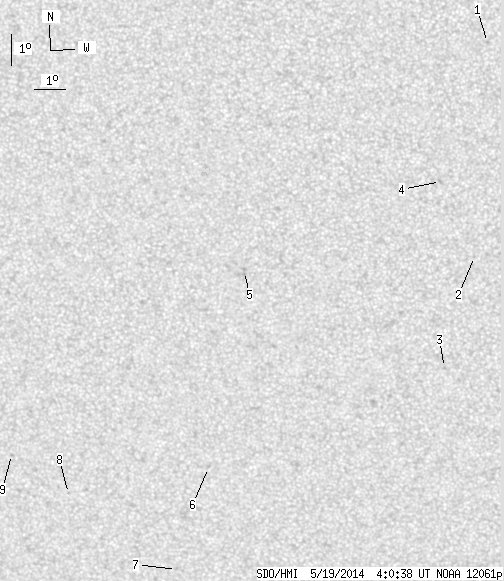

SDO HMI 2014-05-19 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.96 | 0.00 | 6.89 | -21.50 | 161.29 | -6.31 | 165.70 | 0.3516 | -696.7 | -581.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.68 | -12.51 | 167.84 | 0.24 | 181.29 | 0.1796 | -923.0 | -583.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -19.19 | 167.42 | -0.18 | 179.41 | 0.2933 | -691.0 | -430.1 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -22.75 | 166.42 | -1.18 | 176.91 | 0.3528 | -645.0 | -561.8 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -16.82 | 166.35 | -1.25 | 175.25 | 0.2543 | -758.0 | -595.5 | |
| 0.00 | 2.61 | 0.00 | 1.37 | -19.64 | 159.99 | -7.61 | 157.41 | 0.3262 | -707.0 | -754.5 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -25.99 | 158.39 | -9.22 | 160.37 | 0.4303 | -630.0 | -563.1 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -29.41 | 156.95 | -10.65 | 160.62 | 0.4871 | -609.0 | -517.6 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -26.81 | 153.46 | -14.14 | 152.41 | 0.4728 | -866.0 | -610.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -25.50 | 151.64 | -15.96 | 147.96 | 0.4698 | -441.0 | -409.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
