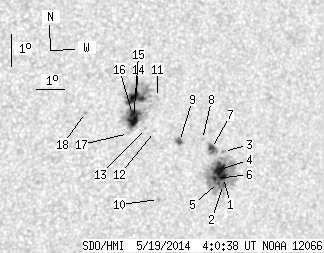

SDO HMI 2014-05-19 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.23 | 192.78 | 31.77 | 111.13 | -16.86 | 195.04 | 27.44 | 239.76 | 0.5122 | -1.6 | 54.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.05 | 88.33 | 2.38 | 51.89 | -17.91 | 196.76 | 29.15 | 239.30 | 0.5412 | 973.8 | 382.2 | |
| 1.26 | -1.00 | 0.74 | -1.00 | -18.13 | 196.80 | 29.19 | 238.96 | 0.5431 | 625.5 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -17.10 | 196.61 | 29.01 | 240.57 | 0.5343 | 789.0 | 653.2 | |
| 12.77 | -1.00 | 7.49 | -1.00 | -17.66 | 196.57 | 28.96 | 239.57 | 0.5372 | 1101.8 | 999999 | |
| 1.35 | -1.00 | 0.79 | -1.00 | -18.07 | 196.60 | 29.00 | 238.91 | 0.5403 | 855.7 | 999999 | |
| 2.43 | -1.00 | 1.42 | -1.00 | -17.95 | 196.47 | 28.87 | 239.02 | 0.5378 | 1068.9 | 999999 | |
| 4.14 | 8.19 | 2.41 | 4.77 | -17.01 | 196.16 | 28.56 | 240.38 | 0.5280 | 1032.8 | 859.7 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -16.73 | 195.79 | 28.19 | 240.58 | 0.5214 | 745.0 | 585.2 | |
| 2.07 | 5.22 | 1.19 | 3.00 | -16.81 | 194.98 | 27.38 | 239.81 | 0.5114 | 903.9 | 754.5 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -18.64 | 194.53 | 26.93 | 236.24 | 0.5182 | 695.0 | 548.1 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -15.45 | 194.00 | 26.40 | 241.49 | 0.4897 | -503.0 | -331.2 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -16.51 | 194.05 | 26.45 | 239.57 | 0.4972 | -400.0 | -339.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -16.42 | 193.72 | 26.11 | 239.45 | 0.4923 | -458.0 | -315.8 | |
| 12.05 | 81.05 | 6.80 | 45.76 | -15.49 | 193.24 | 25.64 | 240.77 | 0.4797 | -1101.7 | -465.7 | |
| 10.88 | -14.00 | 6.16 | -14.00 | -16.14 | 193.26 | 25.65 | 239.55 | 0.4843 | -982.9 | 999999 | |
| 4.23 | -14.00 | 2.39 | -14.00 | -15.96 | 193.19 | 25.59 | 239.85 | 0.4823 | -1181.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -16.59 | 193.14 | 25.54 | 238.64 | 0.4859 | -615.0 | -437.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -15.95 | 191.56 | 23.96 | 238.34 | 0.4605 | -739.0 | -599.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
