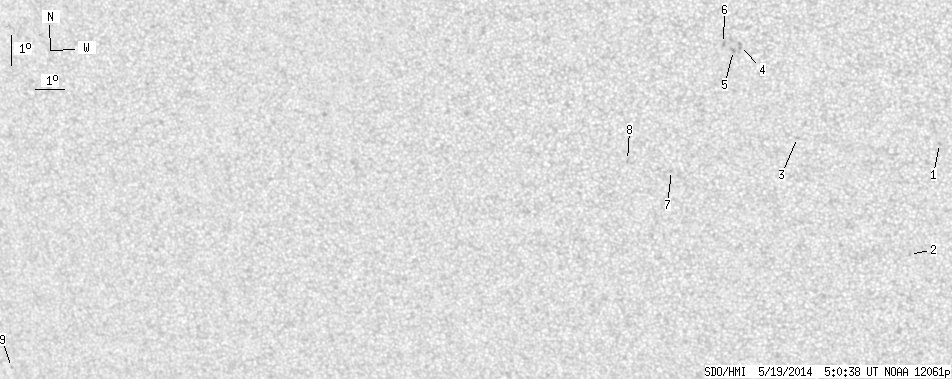

SDO HMI 2014-05-19 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.48 | 0.00 | 8.33 | -22.25 | 158.26 | -8.79 | 159.75 | 0.3797 | -741.8 | -637.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.71 | -22.77 | 166.43 | -0.62 | 178.38 | 0.3530 | -892.0 | -715.1 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -26.41 | 165.39 | -1.66 | 176.38 | 0.4127 | -739.0 | -603.2 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -22.56 | 161.76 | -5.29 | 166.26 | 0.3599 | -689.0 | -577.9 | |
| 0.00 | 2.88 | 0.00 | 1.51 | -19.60 | 160.03 | -7.03 | 158.95 | 0.3221 | -828.0 | -734.9 | |
| 0.00 | 2.25 | 0.00 | 1.18 | -19.76 | 159.79 | -7.26 | 158.50 | 0.3260 | -856.0 | -710.4 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -19.54 | 159.48 | -7.57 | 157.39 | 0.3245 | -694.0 | -594.2 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -23.61 | 157.51 | -9.54 | 157.44 | 0.3974 | -703.0 | -549.7 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -23.27 | 156.06 | -10.99 | 154.07 | 0.4022 | -703.0 | -680.3 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -29.82 | 131.71 | -35.34 | 133.11 | 0.6897 | -572.0 | -422.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
