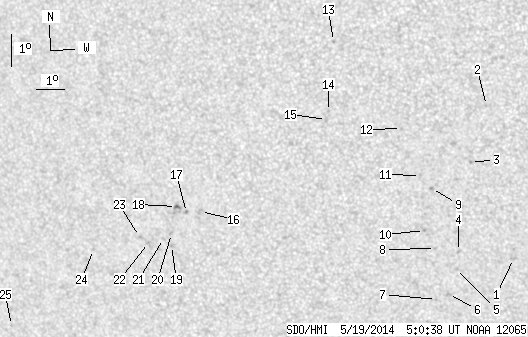

SDO HMI 2014-05-19 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 38.52 | 0.54 | 22.22 | -18.16 | 140.79 | -26.26 | 124.14 | 0.5072 | 146.1 | -5.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.52 | 0.00 | 1.38 | -19.56 | 148.15 | -18.90 | 134.52 | 0.4300 | 790.0 | 614.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -14.74 | 147.76 | -19.29 | 124.45 | 0.3891 | 687.0 | 519.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -16.51 | 147.05 | -20.00 | 127.24 | 0.4137 | 866.0 | 738.8 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -19.31 | 146.30 | -20.75 | 131.56 | 0.4488 | 742.0 | 494.3 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -19.85 | 146.16 | -20.90 | 132.32 | 0.4556 | 631.0 | 539.2 | |
| 0.00 | 2.61 | 0.00 | 1.46 | -20.67 | 145.76 | -21.29 | 133.22 | 0.4681 | 721.0 | 579.6 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -20.83 | 145.32 | -21.74 | 132.92 | 0.4746 | 553.0 | 422.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.20 | 145.52 | -21.53 | 130.39 | 0.4569 | 583.0 | 427.1 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -17.31 | 145.63 | -21.42 | 127.04 | 0.4386 | 949.0 | 801.7 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.63 | 145.22 | -21.83 | 129.00 | 0.4553 | 755.0 | 669.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -16.89 | 145.31 | -21.75 | 125.86 | 0.4392 | 704.0 | 541.1 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -15.42 | 144.84 | -22.22 | 122.40 | 0.4335 | 739.0 | 559.0 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -12.68 | 142.82 | -24.24 | 114.82 | 0.4431 | 785.0 | 667.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -14.85 | 142.40 | -24.65 | 118.87 | 0.4623 | 697.0 | 580.2 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -15.09 | 142.30 | -24.75 | 119.26 | 0.4653 | 87.0 | 136.8 | |
| 0.00 | 2.97 | 0.00 | 1.76 | -17.89 | 137.38 | -29.67 | 120.29 | 0.5477 | -692.0 | -662.6 | |
| 0.00 | 1.53 | 0.00 | 0.91 | -17.91 | 136.86 | -30.19 | 119.95 | 0.5544 | -961.0 | -757.6 | |
| 0.90 | 5.49 | 0.54 | 3.27 | -17.72 | 136.53 | -30.53 | 119.39 | 0.5575 | -886.3 | -706.5 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -18.94 | 136.10 | -30.96 | 121.08 | 0.5702 | -731.0 | -498.1 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -18.56 | 136.17 | -30.88 | 120.52 | 0.5669 | -875.0 | -728.3 | |
| 0.00 | 1.80 | 0.00 | 1.08 | -18.72 | 135.84 | -31.21 | 120.54 | 0.5720 | -528.0 | -363.8 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -18.83 | 135.25 | -31.80 | 120.32 | 0.5799 | -758.0 | -651.8 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -18.63 | 134.96 | -32.10 | 119.81 | 0.5824 | -538.0 | -444.1 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -19.01 | 133.11 | -33.94 | 119.22 | 0.6071 | -619.0 | -467.8 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -21.35 | 129.20 | -37.85 | 120.42 | 0.6650 | -523.0 | -376.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
