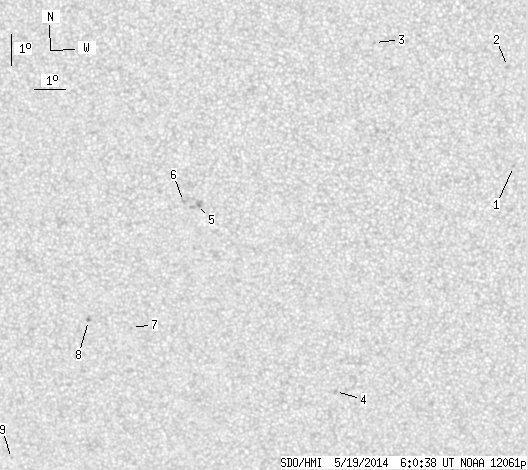

SDO HMI 2014-05-19 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.38 | 0.00 | 8.60 | -20.36 | 161.94 | -4.57 | 168.49 | 0.3293 | -751.4 | -663.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.60 | -18.48 | 170.10 | 3.59 | 191.97 | 0.2879 | -905.0 | -657.8 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -15.34 | 169.85 | 3.35 | 193.91 | 0.2354 | -599.0 | -449.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -14.59 | 165.67 | -0.83 | 176.26 | 0.2161 | -833.0 | -645.4 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -25.74 | 164.28 | -2.22 | 175.00 | 0.4027 | -824.0 | -628.7 | |
| 0.00 | 5.94 | 0.00 | 3.10 | -19.66 | 159.90 | -6.61 | 160.16 | 0.3207 | -622.0 | -771.2 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -19.56 | 159.48 | -7.03 | 158.90 | 0.3216 | -765.0 | -656.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -23.60 | 157.53 | -8.97 | 158.65 | 0.3940 | -697.0 | -539.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -23.37 | 156.11 | -10.39 | 155.40 | 0.3995 | -822.0 | -720.3 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -27.91 | 152.99 | -13.52 | 154.59 | 0.4833 | -696.0 | -577.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
