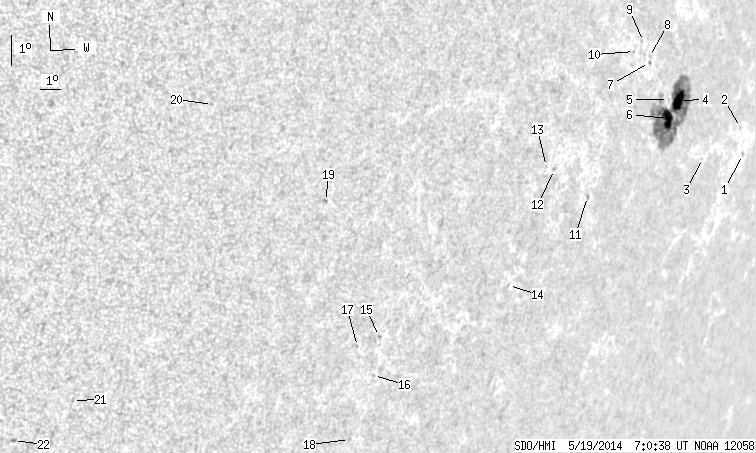

SDO HMI 2014-05-19 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.06 | 174.00 | 32.18 | 194.16 | -13.36 | 229.26 | 63.31 | 256.01 | 0.8958 | 280.8 | 162.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 1.89 | -14.14 | 236.58 | 70.62 | 255.78 | 0.9451 | 303.0 | 168.6 | |
| 0.00 | 0.27 | 0.00 | 0.39 | -13.33 | 235.83 | 69.88 | 256.61 | 0.9407 | 338.0 | 321.7 | |
| 0.00 | 0.54 | 0.00 | 0.70 | -14.38 | 233.21 | 67.25 | 255.33 | 0.9251 | 231.0 | 240.8 | |
| 13.76 | 152.58 | 15.91 | 174.63 | -12.67 | 230.43 | 64.48 | 257.01 | 0.9053 | 626.3 | 224.6 | |
| 0.00 | 0.54 | 0.00 | 0.61 | -12.66 | 229.71 | 63.75 | 256.97 | 0.9000 | 498.0 | 490.8 | |
| 14.30 | -4.00 | 16.27 | -4.00 | -13.24 | 229.91 | 63.96 | 256.34 | 0.9018 | 687.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.24 | -11.57 | 227.95 | 61.99 | 258.06 | 0.8859 | -224.0 | -231.4 | |
| 0.00 | 0.81 | 0.00 | 0.86 | -11.39 | 227.88 | 61.92 | 258.26 | 0.8853 | -439.0 | -379.2 | |
| 0.00 | 0.36 | 0.00 | 0.37 | -10.94 | 227.32 | 61.36 | 258.73 | 0.8806 | -402.0 | -386.8 | |
| 0.00 | 0.63 | 0.00 | 0.64 | -11.27 | 226.85 | 60.90 | 258.33 | 0.8769 | -471.0 | -386.9 | |
| 0.00 | 1.98 | 0.00 | 1.99 | -15.82 | 225.79 | 59.83 | 253.03 | 0.8717 | -341.0 | -264.5 | |
| 0.00 | 1.35 | 0.00 | 1.26 | -15.04 | 223.43 | 57.47 | 253.61 | 0.8508 | -481.0 | -406.4 | |
| 0.00 | 0.81 | 0.00 | 0.75 | -14.96 | 222.93 | 56.97 | 253.63 | 0.8462 | -519.0 | -453.4 | |
| 0.00 | 1.17 | 0.00 | 1.08 | -18.73 | 222.46 | 56.50 | 249.14 | 0.8472 | -363.0 | -276.0 | |
| 0.00 | 1.35 | 0.00 | 1.10 | -20.54 | 216.31 | 50.35 | 245.55 | 0.7943 | -658.0 | -555.7 | |
| 0.00 | 0.72 | 0.00 | 0.59 | -21.79 | 216.59 | 50.63 | 244.10 | 0.8002 | -561.0 | -501.6 | |
| 0.00 | 0.81 | 0.00 | 0.65 | -20.89 | 215.35 | 49.40 | 244.85 | 0.7859 | -604.0 | -552.4 | |
| 0.00 | 1.35 | 0.00 | 1.12 | -23.89 | 216.42 | 50.46 | 241.53 | 0.8043 | -152.0 | -197.3 | |
| 0.00 | 1.89 | 0.00 | 1.39 | -16.36 | 212.14 | 46.18 | 249.69 | 0.7404 | -778.0 | -638.2 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -13.47 | 206.51 | 40.55 | 252.07 | 0.6668 | -592.0 | -529.1 | |
| 0.00 | 1.35 | 0.00 | 0.89 | -22.93 | 203.24 | 37.28 | 237.07 | 0.6670 | -488.0 | -379.5 | |
| 0.00 | 2.43 | 0.00 | 1.59 | -24.28 | 201.24 | 35.29 | 234.01 | 0.6531 | -795.0 | -598.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
