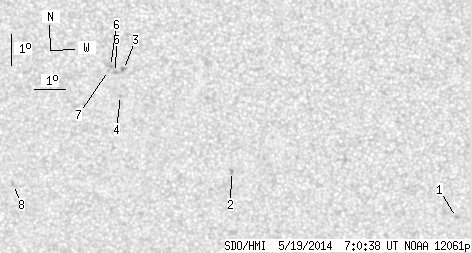

SDO HMI 2014-05-19 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.49 | 0.00 | 7.65 | -21.49 | 160.97 | -4.99 | 165.97 | 0.3485 | -829.4 | -702.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 07:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.92 | -24.45 | 170.89 | 4.94 | 191.68 | 0.3886 | -838.0 | -705.4 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -22.95 | 163.42 | -2.54 | 173.44 | 0.3583 | -895.0 | -703.1 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -19.66 | 159.99 | -5.96 | 161.96 | 0.3173 | -994.0 | -864.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -20.49 | 159.86 | -6.09 | 162.43 | 0.3309 | -747.0 | -596.1 | |
| 0.00 | 2.43 | 0.00 | 1.27 | -19.75 | 159.73 | -6.23 | 161.32 | 0.3201 | -845.0 | -709.5 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -19.56 | 159.58 | -6.38 | 160.68 | 0.3180 | -913.0 | -772.8 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -19.69 | 159.51 | -6.45 | 160.63 | 0.3203 | -705.0 | -573.0 | |
| 0.00 | 2.70 | 0.00 | 1.45 | -23.33 | 156.17 | -9.79 | 156.62 | 0.3952 | -698.0 | -605.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
