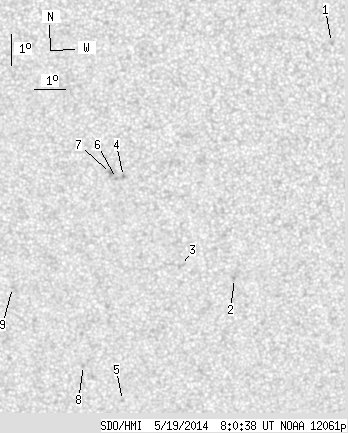

SDO HMI 2014-05-19 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.66 | 0.00 | 8.25 | -21.35 | 161.10 | -4.31 | 168.89 | 0.3393 | -844.4 | -676.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.34 | 0.00 | 1.19 | -15.48 | 166.65 | 1.24 | 185.17 | 0.2320 | -781.0 | -639.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -22.97 | 163.50 | -1.91 | 175.06 | 0.3578 | -957.0 | -806.8 | |
| 0.00 | 3.60 | 0.00 | 1.91 | -22.55 | 161.76 | -3.65 | 170.42 | 0.3545 | -722.0 | -529.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -19.68 | 159.96 | -5.45 | 163.46 | 0.3152 | -1028.0 | -934.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -26.98 | 159.61 | -5.80 | 167.88 | 0.4309 | -711.0 | -550.2 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -19.75 | 159.74 | -5.67 | 162.87 | 0.3173 | -907.0 | -787.1 | |
| 0.00 | 2.61 | 0.00 | 1.36 | -19.59 | 159.55 | -5.86 | 162.17 | 0.3157 | -924.0 | -829.4 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -25.80 | 158.35 | -7.06 | 164.57 | 0.4177 | -775.0 | -563.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -23.23 | 156.13 | -9.28 | 157.60 | 0.3906 | -795.0 | -651.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
