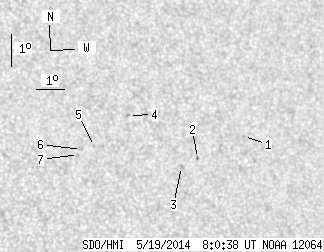

SDO HMI 2014-05-19 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.01 | 0.00 | 4.70 | 8.33 | 196.02 | 30.61 | 289.45 | 0.5361 | 192.0 | 9.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.77 | 8.75 | 199.40 | 33.99 | 288.35 | 0.5844 | -416.0 | -426.7 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 8.04 | 197.64 | 32.23 | 288.01 | 0.5575 | -595.0 | -596.3 | |
| 0.00 | 1.71 | 0.00 | 1.01 | 7.78 | 197.04 | 31.63 | 287.86 | 0.5481 | -534.0 | -480.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 9.32 | 195.29 | 29.88 | 291.58 | 0.5307 | 950.0 | 687.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 8.34 | 194.00 | 28.59 | 290.61 | 0.5079 | 726.0 | 493.2 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 8.24 | 193.54 | 28.13 | 290.72 | 0.5009 | 486.0 | 386.1 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 8.09 | 193.43 | 28.02 | 290.50 | 0.4985 | 727.0 | 578.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
