SDO HMI 2014-05-19 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.73 | 0.00 | 9.31 | -21.11 | 162.78 | -2.08 | 174.28 | 0.3327 | -823.9 | -694.0 | |
|
previous
or next observation for the same group /

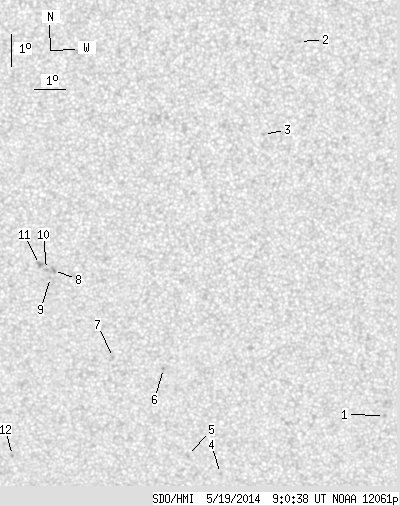

back to the solar disc SDO HMI 2014-05-19 09:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.73 | -24.47 | 170.84 | 5.98 | 194.02 | 0.3928 | -804.0 | -639.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.62 | 167.80 | 2.94 | 195.41 | 0.1890 | -857.0 | -716.1 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -15.51 | 166.70 | 1.84 | 187.63 | 0.2337 | -815.0 | -627.8 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -26.39 | 165.37 | 0.51 | 181.11 | 0.4119 | -644.0 | -530.8 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -25.79 | 164.26 | -0.61 | 178.63 | 0.4023 | -704.0 | -586.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -22.93 | 163.48 | -1.38 | 176.42 | 0.3566 | -1079.0 | -919.5 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -22.57 | 161.84 | -3.02 | 172.05 | 0.3534 | -786.0 | -557.2 | |
| 0.00 | 2.61 | 0.00 | 1.36 | -19.77 | 159.96 | -4.90 | 165.12 | 0.3143 | -922.0 | -721.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -20.00 | 159.86 | -5.00 | 165.02 | 0.3183 | -598.0 | -500.0 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -19.74 | 159.74 | -5.12 | 164.44 | 0.3148 | -968.0 | -778.3 | |
| 0.00 | 3.06 | 0.00 | 1.59 | -19.58 | 159.52 | -5.34 | 163.66 | 0.3132 | -988.0 | -853.6 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -25.77 | 158.35 | -6.52 | 165.68 | 0.4150 | -722.0 | -640.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
