SDO HMI 2014-05-19 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.37 | 0.00 | 9.16 | -21.42 | 162.79 | -1.53 | 175.79 | 0.3418 | -668.0 | -617.3 | |
|
previous
or next observation for the same group /

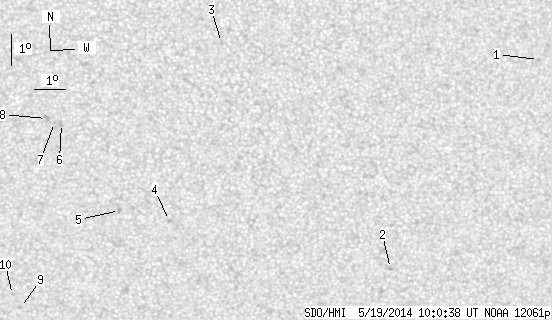

back to the solar disc SDO HMI 2014-05-19 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.66 | -17.76 | 175.28 | 10.96 | 213.91 | 0.3261 | 651.0 | 477.4 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -24.49 | 170.79 | 6.48 | 195.12 | 0.3953 | -876.0 | -706.0 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.26 | 165.12 | 0.80 | 182.93 | 0.2617 | -681.0 | -632.8 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -22.93 | 163.43 | -0.89 | 177.69 | 0.3562 | -845.0 | -712.5 | |
| 0.00 | 2.34 | 0.00 | 1.24 | -22.60 | 161.78 | -2.53 | 173.34 | 0.3530 | -899.0 | -717.9 | |
| 0.00 | 2.43 | 0.00 | 1.27 | -19.80 | 159.96 | -4.35 | 166.74 | 0.3127 | -785.0 | -743.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.77 | 159.74 | -4.58 | 166.05 | 0.3130 | -894.0 | -723.3 | |
| 0.00 | 3.33 | 0.00 | 1.73 | -19.64 | 159.48 | -4.83 | 165.20 | 0.3120 | -842.0 | -753.9 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -25.77 | 158.37 | -5.94 | 166.89 | 0.4129 | -720.0 | -562.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -25.34 | 158.12 | -6.19 | 166.09 | 0.4071 | -789.0 | -622.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
