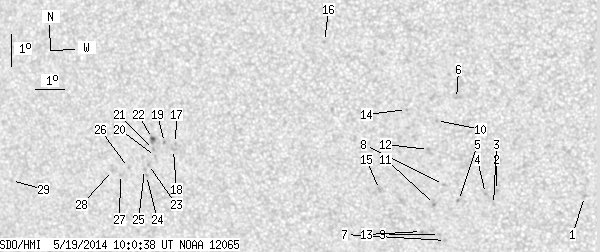

SDO HMI 2014-05-19 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 36.36 | 0.68 | 20.46 | -18.71 | 141.43 | -22.88 | 128.99 | 0.4719 | 106.1 | 22.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.77 | -19.71 | 151.12 | -13.19 | 144.60 | 0.3725 | 984.0 | 758.4 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -19.49 | 148.21 | -16.10 | 138.84 | 0.3989 | 902.0 | 707.7 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -19.94 | 148.07 | -16.25 | 139.36 | 0.4056 | 734.0 | 435.8 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -19.58 | 147.83 | -16.48 | 138.37 | 0.4040 | 638.0 | 527.2 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -19.80 | 146.90 | -17.41 | 137.23 | 0.4164 | 942.0 | 688.6 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -16.58 | 147.17 | -17.15 | 131.54 | 0.3791 | 749.0 | 628.1 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -21.07 | 146.31 | -18.01 | 138.45 | 0.4368 | 540.0 | 514.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -19.28 | 146.45 | -17.86 | 135.63 | 0.4157 | 697.0 | 508.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -20.87 | 146.13 | -18.19 | 137.86 | 0.4366 | 775.0 | 557.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -17.26 | 146.44 | -17.88 | 131.79 | 0.3949 | 855.0 | 728.1 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -19.91 | 146.07 | -18.24 | 136.16 | 0.4267 | 861.0 | 692.9 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -18.17 | 146.07 | -18.24 | 133.00 | 0.4084 | 873.0 | 646.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -20.77 | 145.52 | -18.79 | 136.80 | 0.4419 | 608.0 | 474.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -16.90 | 145.47 | -18.84 | 129.66 | 0.4031 | 729.0 | 544.1 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -19.41 | 144.26 | -20.05 | 132.71 | 0.4420 | 874.0 | 729.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -14.74 | 142.94 | -21.37 | 121.99 | 0.4173 | 771.0 | 640.7 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -17.85 | 137.36 | -26.95 | 122.43 | 0.5132 | -815.0 | -771.4 | |
| 0.00 | 2.16 | 0.00 | 1.25 | -18.04 | 137.26 | -27.06 | 122.66 | 0.5158 | -746.0 | -692.2 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -17.81 | 136.97 | -27.34 | 122.03 | 0.5178 | -834.0 | -763.1 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -18.24 | 136.57 | -27.74 | 122.44 | 0.5259 | -679.0 | -621.3 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -18.02 | 136.54 | -27.77 | 122.03 | 0.5248 | -864.0 | -766.4 | |
| 1.17 | 3.33 | 0.68 | 1.93 | -17.68 | 136.56 | -27.75 | 121.46 | 0.5221 | -901.5 | -794.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -18.49 | 136.28 | -28.04 | 122.61 | 0.5313 | -838.0 | -717.4 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -18.84 | 136.14 | -28.17 | 123.08 | 0.5354 | -771.0 | -626.3 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -18.65 | 136.10 | -28.21 | 122.73 | 0.5345 | -717.0 | -484.7 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -18.57 | 135.53 | -28.78 | 122.14 | 0.5411 | -795.0 | -597.8 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -18.79 | 135.20 | -29.12 | 122.24 | 0.5467 | -528.0 | -492.0 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -18.66 | 134.93 | -29.38 | 121.81 | 0.5492 | -653.0 | -551.9 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -18.90 | 131.09 | -33.23 | 119.53 | 0.5980 | -637.0 | -452.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
