SDO HMI 2014-05-19 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.84 | 172.18 | 30.28 | 102.59 | -16.91 | 195.11 | 30.80 | 242.09 | 0.5561 | 110.9 | 32.5 | |
|
previous
or next observation for the same group /

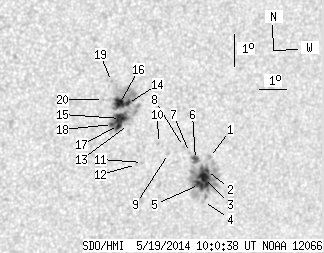

back to the solar disc SDO HMI 2014-05-19 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.25 | 0.00 | 1.37 | -17.22 | 196.86 | 32.54 | 242.70 | 0.5804 | 646.0 | 573.9 | |
| 2.07 | 82.85 | 1.26 | 50.41 | -17.63 | 196.83 | 32.51 | 242.02 | 0.5822 | 842.2 | 350.2 | |
| 14.75 | -2.00 | 8.98 | -2.00 | -17.85 | 196.80 | 32.48 | 241.65 | 0.5830 | 1022.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -18.61 | 196.92 | 32.60 | 240.53 | 0.5887 | 75.0 | 48.3 | |
| 6.12 | -2.00 | 3.72 | -2.00 | -18.07 | 196.65 | 32.34 | 241.20 | 0.5824 | 963.6 | 999999 | |
| 3.15 | -2.00 | 1.90 | -2.00 | -17.29 | 196.34 | 32.03 | 242.26 | 0.5743 | 971.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -17.07 | 196.08 | 31.76 | 242.44 | 0.5697 | 609.0 | 559.6 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -16.89 | 195.82 | 31.50 | 242.58 | 0.5654 | 435.0 | 432.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -17.12 | 195.30 | 30.99 | 241.87 | 0.5601 | 568.0 | 464.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -16.81 | 194.88 | 30.56 | 242.10 | 0.5529 | 797.0 | 694.0 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -17.42 | 194.40 | 30.08 | 240.75 | 0.5503 | 593.0 | 472.3 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -17.48 | 194.19 | 29.88 | 240.49 | 0.5480 | 661.0 | 534.5 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -16.24 | 193.68 | 29.37 | 242.26 | 0.5341 | -261.0 | -232.5 | |
| 2.79 | 77.27 | 1.63 | 45.00 | -15.58 | 193.54 | 29.23 | 243.30 | 0.5285 | -881.0 | -393.1 | |
| 8.37 | -14.00 | 4.88 | -14.00 | -16.05 | 193.36 | 29.05 | 242.35 | 0.5289 | -1067.4 | 999999 | |
| 7.74 | -14.00 | 4.50 | -14.00 | -15.59 | 193.26 | 28.94 | 243.09 | 0.5247 | -1177.2 | 999999 | |
| 3.51 | -14.00 | 2.05 | -14.00 | -16.27 | 193.33 | 29.01 | 241.94 | 0.5297 | -888.0 | 999999 | |
| 2.34 | -14.00 | 1.36 | -14.00 | -16.25 | 193.11 | 28.79 | 241.83 | 0.5266 | -955.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -14.91 | 192.87 | 28.55 | 244.04 | 0.5157 | 468.0 | 297.8 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -15.47 | 192.66 | 28.35 | 242.88 | 0.5162 | -622.0 | -466.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
