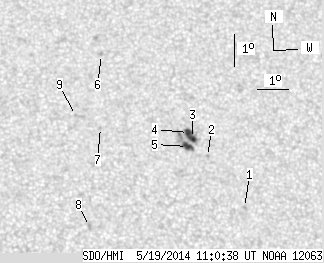

SDO HMI 2014-05-19 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.33 | 35.26 | 6.54 | 18.65 | 9.25 | 180.85 | 17.08 | 304.12 | 0.3520 | -500.8 | -404.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.91 | 7.38 | 182.97 | 19.20 | 296.68 | 0.3666 | -850.0 | -692.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 8.94 | 181.85 | 18.08 | 301.91 | 0.3628 | -717.0 | -600.9 | |
| 3.60 | 25.90 | 1.91 | 13.74 | 9.50 | 181.40 | 17.63 | 303.86 | 0.3613 | -1104.3 | -748.5 | |
| 4.05 | -3.00 | 2.15 | -3.00 | 9.68 | 181.28 | 17.51 | 304.47 | 0.3613 | -998.0 | 999999 | |
| 4.68 | -3.00 | 2.48 | -3.00 | 9.25 | 181.22 | 17.45 | 303.53 | 0.3567 | -1157.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 12.08 | 178.62 | 14.85 | 314.35 | 0.3519 | -153.0 | -239.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 9.81 | 178.46 | 14.70 | 309.53 | 0.3256 | 839.0 | 670.6 | |
| 0.00 | 2.97 | 0.00 | 1.54 | 6.75 | 178.00 | 14.23 | 302.23 | 0.2898 | 919.0 | 663.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 10.17 | 177.69 | 13.92 | 311.93 | 0.3197 | 807.0 | 683.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
