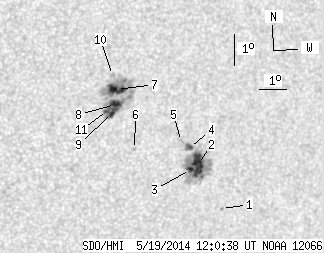

SDO HMI 2014-05-19 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.10 | 164.06 | 30.13 | 98.79 | -16.87 | 195.03 | 31.81 | 242.80 | 0.5690 | 8.4 | 18.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.68 | -19.25 | 198.06 | 34.84 | 240.90 | 0.6195 | 444.0 | 452.5 | |
| 18.35 | 76.18 | 11.31 | 46.95 | -17.88 | 196.81 | 33.59 | 242.27 | 0.5971 | 984.7 | 432.3 | |
| 2.61 | -2.00 | 1.60 | -2.00 | -18.04 | 196.58 | 33.36 | 241.87 | 0.5951 | 1075.8 | 999999 | |
| 2.88 | -2.00 | 1.76 | -2.00 | -17.35 | 196.40 | 33.18 | 242.85 | 0.5892 | 959.6 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.21 | -17.17 | 196.06 | 32.84 | 242.94 | 0.5840 | 475.0 | 469.5 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -17.45 | 194.35 | 31.13 | 241.40 | 0.5638 | 738.0 | 620.9 | |
| 10.97 | 81.13 | 6.45 | 47.77 | -15.59 | 193.36 | 30.14 | 243.89 | 0.5407 | -1087.1 | -421.8 | |
| 7.55 | -7.00 | 4.45 | -7.00 | -16.06 | 193.40 | 30.18 | 243.11 | 0.5438 | -1020.8 | 999999 | |
| 5.85 | -7.00 | 3.45 | -7.00 | -16.31 | 193.33 | 30.11 | 242.63 | 0.5443 | -869.5 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.48 | -15.16 | 193.14 | 29.93 | 244.50 | 0.5356 | -302.0 | -268.3 | |
| 1.89 | -7.00 | 1.11 | -7.00 | -16.25 | 193.14 | 29.92 | 242.61 | 0.5414 | -955.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
