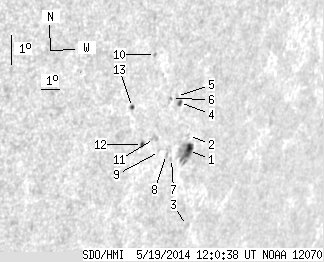

SDO HMI 2014-05-19 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.42 | 44.44 | 10.17 | 39.44 | -18.36 | 218.12 | 54.90 | 249.26 | 0.8323 | 251.2 | 149.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.09 | 22.84 | 7.33 | 20.61 | -18.55 | 218.82 | 55.60 | 249.17 | 0.8390 | 685.3 | 256.4 | |
| 0.00 | 1.71 | 0.00 | 1.53 | -18.08 | 218.59 | 55.37 | 249.68 | 0.8363 | 505.0 | 495.4 | |
| 0.00 | 2.79 | 0.00 | 2.63 | -20.92 | 219.97 | 56.75 | 246.64 | 0.8530 | -32.0 | -78.1 | |
| 1.26 | 2.61 | 1.10 | 2.28 | -17.06 | 217.63 | 54.41 | 250.70 | 0.8258 | 606.4 | 465.3 | |
| 0.00 | 1.44 | 0.00 | 1.25 | -16.88 | 217.39 | 54.17 | 250.88 | 0.8233 | 380.0 | 399.9 | |
| 0.00 | 0.54 | 0.00 | 0.47 | -16.95 | 217.14 | 53.93 | 250.75 | 0.8211 | 667.0 | 614.7 | |
| 0.00 | 0.72 | 0.00 | 0.64 | -18.83 | 217.99 | 54.77 | 248.67 | 0.8321 | -237.0 | -194.4 | |
| 0.00 | 1.26 | 0.00 | 1.11 | -18.71 | 217.66 | 54.44 | 248.74 | 0.8289 | -439.0 | -331.9 | |
| 0.00 | 0.45 | 0.00 | 0.39 | -18.63 | 217.23 | 54.01 | 248.75 | 0.8248 | -607.0 | -537.2 | |
| 0.00 | 1.44 | 0.00 | 1.20 | -15.61 | 215.77 | 52.55 | 252.12 | 0.8056 | -637.0 | -449.7 | |
| 0.00 | 4.14 | 0.00 | 3.56 | -18.23 | 216.78 | 53.56 | 249.14 | 0.8199 | 473.0 | 342.0 | |
| 1.08 | 2.43 | 0.92 | 2.06 | -18.43 | 216.22 | 53.01 | 248.77 | 0.8151 | -531.6 | -475.5 | |
| 0.99 | 2.07 | 0.82 | 1.71 | -17.29 | 215.22 | 52.00 | 249.94 | 0.8032 | -558.4 | -403.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
