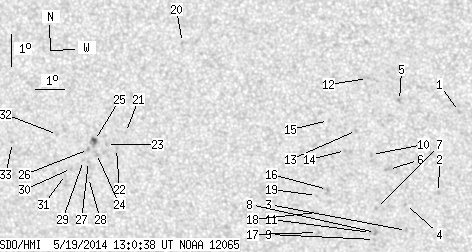

SDO HMI 2014-05-19 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 49.14 | 0.98 | 27.23 | -18.47 | 141.86 | -20.81 | 130.92 | 0.4448 | 176.5 | 123.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.90 | -16.89 | 149.08 | -13.59 | 138.62 | 0.3415 | 755.0 | 633.0 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -19.44 | 148.18 | -14.49 | 141.63 | 0.3818 | 876.0 | 676.3 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -20.64 | 146.99 | -15.68 | 141.51 | 0.4082 | 757.0 | 572.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -19.81 | 147.04 | -15.63 | 140.21 | 0.3978 | 786.0 | 578.6 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -16.52 | 147.15 | -15.52 | 134.18 | 0.3593 | 853.0 | 733.8 | |
| 0.00 | 2.88 | 0.00 | 1.55 | -18.69 | 146.58 | -16.08 | 137.44 | 0.3897 | 816.0 | 664.8 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -19.92 | 146.05 | -16.61 | 138.74 | 0.4094 | 921.0 | 698.9 | |
| 0.00 | 2.16 | 0.00 | 1.18 | -20.69 | 145.93 | -16.73 | 139.84 | 0.4194 | 911.0 | 692.0 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -20.91 | 145.87 | -16.79 | 140.11 | 0.4226 | 638.0 | 503.8 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -18.21 | 146.07 | -16.60 | 135.67 | 0.3901 | 896.0 | 698.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -20.69 | 145.76 | -16.90 | 139.56 | 0.4211 | 615.0 | 513.7 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -15.82 | 146.15 | -16.51 | 130.99 | 0.3639 | 788.0 | 579.6 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -17.45 | 145.64 | -17.03 | 133.51 | 0.3868 | 727.0 | 584.0 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -18.07 | 145.21 | -17.46 | 134.04 | 0.3984 | 370.0 | 436.5 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -17.12 | 144.74 | -17.93 | 131.46 | 0.3942 | 658.0 | 463.1 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -19.30 | 144.47 | -18.20 | 135.16 | 0.4197 | 728.0 | 554.0 | |
| 0.00 | 2.43 | 0.00 | 1.34 | -20.66 | 143.96 | -18.71 | 136.76 | 0.4399 | 579.0 | 548.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -20.02 | 144.01 | -18.66 | 135.75 | 0.4326 | 702.0 | 590.1 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -19.48 | 144.08 | -18.59 | 134.90 | 0.4261 | 586.0 | 562.8 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -14.62 | 140.10 | -22.57 | 120.47 | 0.4327 | 660.0 | 526.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -17.40 | 137.77 | -24.89 | 123.52 | 0.4838 | -820.0 | -653.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -17.90 | 137.38 | -25.29 | 124.04 | 0.4925 | -877.0 | -746.2 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -17.77 | 137.05 | -25.62 | 123.49 | 0.4957 | -883.0 | -726.6 | |
| 0.00 | 3.06 | 0.00 | 1.75 | -18.04 | 136.65 | -26.02 | 123.61 | 0.5028 | -674.0 | -641.0 | |
| 1.71 | 5.31 | 0.98 | 3.03 | -17.63 | 136.64 | -26.02 | 122.89 | 0.4999 | -928.5 | -740.0 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -17.91 | 136.39 | -26.28 | 123.14 | 0.5052 | -675.0 | -571.2 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -18.29 | 136.33 | -26.34 | 123.75 | 0.5087 | -665.0 | -573.4 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -18.80 | 136.24 | -26.43 | 124.53 | 0.5135 | -763.0 | -675.7 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -18.26 | 136.15 | -26.52 | 123.53 | 0.5106 | -707.0 | -579.8 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -18.50 | 135.68 | -26.99 | 123.53 | 0.5183 | -450.0 | -501.7 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -18.69 | 135.43 | -27.24 | 123.63 | 0.5227 | -358.0 | -407.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -17.42 | 135.36 | -27.31 | 121.40 | 0.5148 | -509.0 | -435.3 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -17.64 | 133.70 | -28.97 | 120.45 | 0.5375 | -511.0 | -427.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
