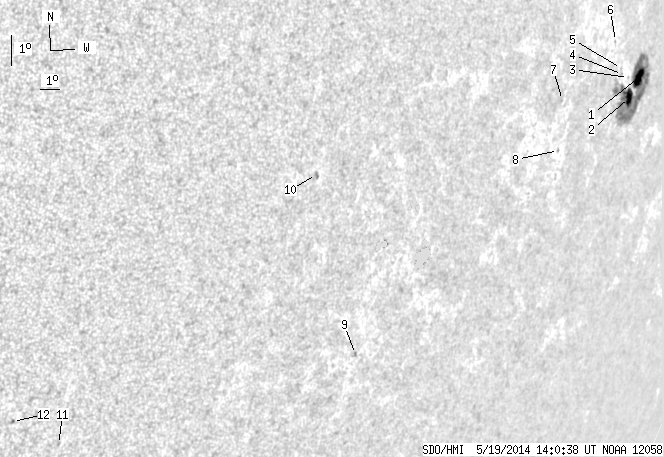

SDO HMI 2014-05-19 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.78 | 132.47 | 26.45 | 172.00 | -13.15 | 229.54 | 67.42 | 256.55 | 0.9245 | 333.6 | 128.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.06 | 120.41 | 14.91 | 160.61 | -12.62 | 230.47 | 68.36 | 257.28 | 0.9314 | 495.8 | 154.7 | |
| 8.72 | -1.00 | 11.54 | -1.00 | -13.25 | 230.08 | 67.96 | 256.58 | 0.9291 | 525.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.35 | -12.64 | 229.65 | 67.53 | 257.21 | 0.9262 | 460.0 | 444.7 | |
| 0.00 | 0.63 | 0.00 | 0.80 | -12.57 | 229.12 | 67.00 | 257.27 | 0.9228 | 688.0 | 647.9 | |
| 0.00 | 0.99 | 0.00 | 1.25 | -12.39 | 228.95 | 66.83 | 257.45 | 0.9216 | 582.0 | 518.1 | |
| 0.00 | 0.72 | 0.00 | 0.88 | -11.58 | 228.08 | 65.96 | 258.29 | 0.9154 | -141.0 | -101.8 | |
| 0.00 | 0.90 | 0.00 | 0.99 | -13.51 | 225.12 | 63.00 | 255.95 | 0.8949 | -317.0 | -244.2 | |
| 0.00 | 1.44 | 0.00 | 1.62 | -15.05 | 225.62 | 63.50 | 254.28 | 0.8997 | -290.0 | -251.6 | |
| 0.00 | 1.35 | 0.00 | 1.21 | -21.82 | 216.65 | 54.53 | 245.09 | 0.8357 | -566.0 | -476.6 | |
| 0.00 | 2.97 | 0.00 | 2.34 | -16.21 | 212.08 | 49.97 | 250.83 | 0.7807 | -621.0 | -492.2 | |
| 0.00 | 1.35 | 0.00 | 0.96 | -25.11 | 203.46 | 41.34 | 236.33 | 0.7210 | -448.0 | -348.1 | |
| 0.00 | 1.44 | 0.00 | 0.99 | -24.40 | 201.17 | 39.05 | 236.06 | 0.6939 | -636.0 | -560.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
