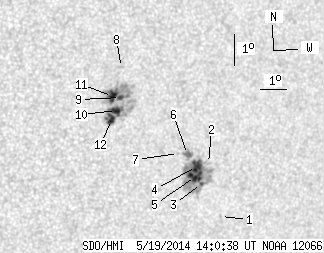

SDO HMI 2014-05-19 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.81 | 158.63 | 26.14 | 96.94 | -16.98 | 195.19 | 33.08 | 243.40 | 0.5856 | 131.2 | 17.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.40 | -19.32 | 198.11 | 36.00 | 241.44 | 0.6337 | 619.0 | 458.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -17.66 | 197.24 | 35.13 | 243.47 | 0.6150 | -122.0 | -75.2 | |
| 0.99 | 73.92 | 0.62 | 46.23 | -18.29 | 197.11 | 35.00 | 242.43 | 0.6165 | 504.0 | 316.5 | |
| 9.89 | -3.00 | 6.17 | -3.00 | -17.76 | 196.80 | 34.68 | 243.07 | 0.6100 | 999.9 | 999999 | |
| 11.69 | -3.00 | 7.31 | -3.00 | -18.08 | 196.83 | 34.71 | 242.60 | 0.6120 | 1006.6 | 999999 | |
| 0.00 | 7.28 | 0.00 | 4.51 | -17.39 | 196.37 | 34.25 | 243.40 | 0.6029 | 1031.0 | 789.6 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -17.37 | 196.02 | 33.90 | 243.24 | 0.5984 | 449.0 | 374.3 | |
| 0.00 | 2.07 | 0.00 | 1.23 | -14.72 | 193.40 | 31.28 | 246.07 | 0.5515 | 694.0 | 485.9 | |
| 2.34 | 73.20 | 1.39 | 43.62 | -15.66 | 193.51 | 31.39 | 244.55 | 0.5576 | -929.4 | -422.4 | |
| 5.76 | -9.00 | 3.43 | -9.00 | -16.07 | 193.43 | 31.32 | 243.82 | 0.5587 | -1003.2 | 999999 | |
| 7.28 | -9.00 | 4.33 | -9.00 | -15.63 | 193.21 | 31.09 | 244.41 | 0.5535 | -1174.7 | 999999 | |
| 4.86 | -9.00 | 2.89 | -9.00 | -16.35 | 193.30 | 31.18 | 243.26 | 0.5584 | -901.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
