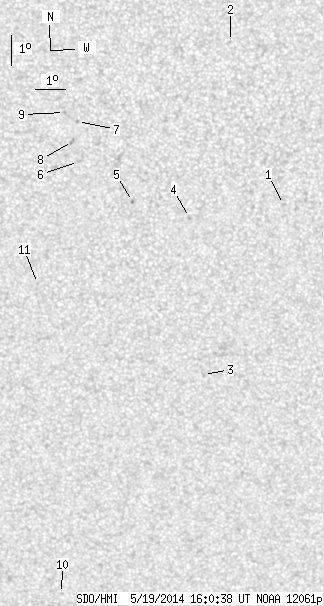

SDO HMI 2014-05-19 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.75 | 0.00 | 8.40 | -23.24 | 161.92 | 0.91 | 182.31 | 0.3628 | -750.9 | -579.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.96 | -22.62 | 166.57 | 5.56 | 194.35 | 0.3625 | -179.0 | -217.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.43 | 164.71 | 3.70 | 193.14 | 0.2717 | -619.0 | -396.8 | |
| 0.00 | 2.16 | 0.00 | 1.19 | -28.24 | 164.07 | 3.06 | 186.10 | 0.4441 | -742.0 | -535.0 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -23.05 | 163.49 | 2.47 | 186.35 | 0.3603 | -735.0 | -526.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -22.53 | 161.60 | 0.59 | 181.57 | 0.3497 | -919.0 | -771.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -21.24 | 159.84 | -1.17 | 176.67 | 0.3288 | -801.0 | -668.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -19.96 | 159.82 | -1.19 | 176.35 | 0.3076 | -1004.0 | -796.5 | |
| 0.00 | 2.52 | 0.00 | 1.32 | -20.59 | 159.66 | -1.36 | 175.99 | 0.3184 | -855.0 | -704.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -19.67 | 159.41 | -1.61 | 174.99 | 0.3034 | -965.0 | -741.0 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -35.92 | 159.01 | -2.00 | 177.08 | 0.5586 | -666.0 | -511.6 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -25.20 | 158.43 | -2.58 | 174.05 | 0.3952 | -775.0 | -657.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
