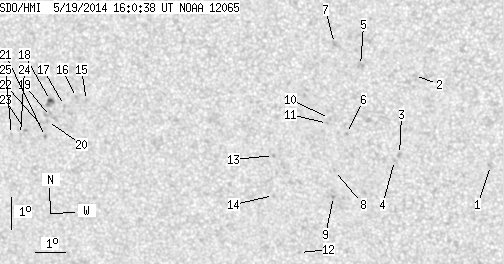

SDO HMI 2014-05-19 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 43.27 | 0.96 | 23.74 | -18.27 | 141.53 | -19.48 | 132.69 | 0.4281 | 104.6 | -25.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.34 | 0.00 | 1.23 | -19.76 | 151.24 | -9.77 | 152.19 | 0.3439 | 762.0 | 567.4 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -16.90 | 148.95 | -12.06 | 141.92 | 0.3256 | 810.0 | 596.9 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -19.38 | 148.28 | -12.73 | 145.01 | 0.3641 | 969.0 | 787.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -19.57 | 148.10 | -12.91 | 144.95 | 0.3682 | 853.0 | 595.7 | |
| 0.00 | 3.15 | 0.00 | 1.66 | -16.57 | 147.22 | -13.79 | 137.56 | 0.3400 | 752.0 | 676.6 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -18.70 | 146.59 | -14.42 | 140.46 | 0.3722 | 963.0 | 790.2 | |
| 0.00 | 2.34 | 0.00 | 1.23 | -15.87 | 146.43 | -14.59 | 134.52 | 0.3412 | 848.0 | 671.6 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -19.87 | 146.08 | -14.93 | 141.57 | 0.3915 | 918.0 | 700.2 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -20.70 | 145.96 | -15.05 | 142.73 | 0.4028 | 897.0 | 779.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -18.22 | 146.07 | -14.94 | 138.61 | 0.3720 | 823.0 | 711.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -18.38 | 145.99 | -15.02 | 138.75 | 0.3747 | 888.0 | 679.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -22.49 | 144.61 | -16.40 | 143.20 | 0.4374 | 658.0 | 487.8 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -19.37 | 144.09 | -16.92 | 137.29 | 0.4065 | 760.0 | 680.6 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -20.65 | 143.95 | -17.07 | 139.24 | 0.4224 | 615.0 | 463.8 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -17.55 | 137.94 | -23.07 | 125.68 | 0.4618 | -845.0 | -682.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -17.45 | 137.61 | -23.40 | 125.14 | 0.4652 | -869.0 | -712.9 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -17.69 | 137.16 | -23.85 | 125.11 | 0.4729 | -817.0 | -704.0 | |
| 1.71 | 5.57 | 0.96 | 3.14 | -17.53 | 136.70 | -24.32 | 124.34 | 0.4775 | -867.8 | -719.0 | |
| 0.00 | 6.29 | 0.00 | 3.56 | -18.03 | 136.62 | -24.39 | 125.17 | 0.4823 | -787.0 | -680.3 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -18.19 | 136.49 | -24.52 | 125.32 | 0.4852 | -770.0 | -600.9 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -18.66 | 136.35 | -24.66 | 126.01 | 0.4907 | -856.0 | -726.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -18.41 | 136.35 | -24.66 | 125.57 | 0.4886 | -889.0 | -708.7 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -18.46 | 135.68 | -25.34 | 124.99 | 0.4975 | -846.0 | -703.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -18.58 | 135.48 | -25.53 | 125.01 | 0.5009 | -773.0 | -605.5 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -18.58 | 135.16 | -25.85 | 124.70 | 0.5048 | -619.0 | -527.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
