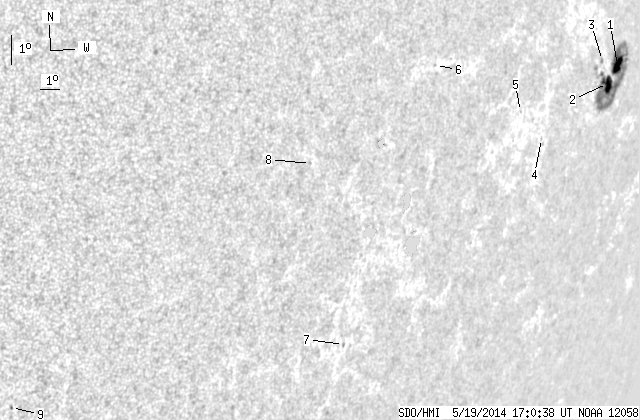

SDO HMI 2014-05-19 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.85 | 116.53 | 31.35 | 164.43 | -13.05 | 229.76 | 69.30 | 256.81 | 0.9366 | 354.6 | 127.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.52 | 109.33 | 15.28 | 157.14 | -12.62 | 230.49 | 70.03 | 257.36 | 0.9415 | 463.2 | 139.0 | |
| 11.33 | -1.00 | 16.07 | -1.00 | -13.20 | 229.94 | 69.48 | 256.71 | 0.9384 | 533.3 | 999999 | |
| 0.00 | 1.89 | 0.00 | 2.57 | -12.51 | 229.09 | 68.63 | 257.41 | 0.9331 | 546.0 | 516.4 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -15.06 | 225.65 | 65.19 | 254.42 | 0.9117 | -211.0 | -192.7 | |
| 0.00 | 0.54 | 0.00 | 0.60 | -14.28 | 223.69 | 63.23 | 255.11 | 0.8971 | -341.0 | -378.2 | |
| 0.00 | 0.99 | 0.00 | 0.92 | -13.03 | 217.76 | 57.30 | 255.93 | 0.8473 | -539.0 | -439.7 | |
| 0.00 | 1.17 | 0.00 | 1.09 | -21.90 | 216.65 | 56.19 | 245.38 | 0.8501 | -272.0 | -248.4 | |
| 0.00 | 1.35 | 0.00 | 1.10 | -16.25 | 212.15 | 51.69 | 251.14 | 0.7982 | -635.0 | -500.0 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -24.36 | 201.19 | 40.73 | 236.99 | 0.7111 | -599.0 | -574.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
