SDO HMI 2014-05-19 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.28 | 133.34 | 24.42 | 83.33 | -17.14 | 195.43 | 34.97 | 244.19 | 0.6103 | 89.4 | 111.6 | |
|
previous
or next observation for the same group /

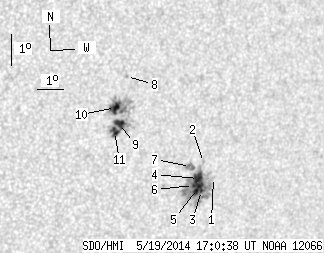

back to the solar disc SDO HMI 2014-05-19 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.81 | -17.75 | 197.42 | 36.96 | 244.27 | 0.6379 | -122.0 | -83.0 | |
| 0.00 | 1.44 | 0.00 | 0.92 | -17.28 | 196.91 | 36.45 | 244.72 | 0.6297 | 625.0 | 470.4 | |
| 2.07 | 70.13 | 1.32 | 44.75 | -18.16 | 197.04 | 36.58 | 243.46 | 0.6352 | 811.1 | 382.8 | |
| 8.18 | -3.00 | 5.21 | -3.00 | -17.79 | 196.83 | 36.37 | 243.92 | 0.6310 | 949.1 | 999999 | |
| 7.82 | -3.00 | 4.99 | -3.00 | -18.10 | 196.87 | 36.41 | 243.46 | 0.6328 | 982.0 | 999999 | |
| 1.53 | -3.00 | 0.97 | -3.00 | -18.01 | 196.69 | 36.23 | 243.51 | 0.6302 | 1209.6 | 999999 | |
| 0.00 | 6.11 | 0.00 | 3.87 | -17.42 | 196.43 | 35.97 | 244.27 | 0.6243 | 986.0 | 843.0 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -14.66 | 193.43 | 32.97 | 247.11 | 0.5737 | 732.0 | 604.8 | |
| 6.29 | 53.32 | 3.82 | 32.33 | -16.13 | 193.43 | 32.97 | 244.69 | 0.5805 | -956.5 | -480.2 | |
| 8.27 | -9.00 | 5.00 | -9.00 | -15.63 | 193.19 | 32.73 | 245.37 | 0.5749 | -1084.3 | 999999 | |
| 5.12 | -9.00 | 3.11 | -9.00 | -16.38 | 193.29 | 32.83 | 244.20 | 0.5799 | -866.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
