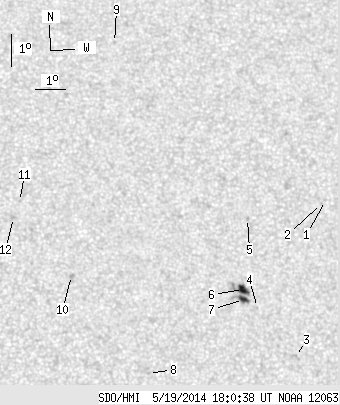

SDO HMI 2014-05-19 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.07 | 33.73 | 5.47 | 18.29 | 9.76 | 180.62 | 20.72 | 300.61 | 0.4074 | -179.0 | -238.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.66 | 12.27 | 184.37 | 24.46 | 301.28 | 0.4754 | 619.0 | 470.2 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 12.17 | 184.22 | 24.32 | 301.25 | 0.4727 | 704.0 | 572.0 | |
| 0.00 | 3.24 | 0.00 | 1.77 | 7.41 | 182.98 | 23.07 | 292.79 | 0.4233 | -719.0 | -639.9 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 8.91 | 181.81 | 21.90 | 297.18 | 0.4160 | -619.0 | -498.1 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 11.67 | 181.68 | 21.78 | 303.04 | 0.4352 | -785.0 | -639.5 | |
| 6.20 | 20.23 | 3.37 | 10.99 | 9.46 | 181.38 | 21.48 | 298.82 | 0.4139 | -1048.3 | -736.1 | |
| 3.87 | -6.00 | 2.10 | -6.00 | 9.15 | 181.36 | 21.45 | 298.18 | 0.4114 | -1067.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 6.83 | 178.14 | 18.24 | 296.41 | 0.3485 | 828.0 | 570.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 17.19 | 177.77 | 17.86 | 318.36 | 0.4428 | 628.0 | 519.8 | |
| 0.00 | 2.16 | 0.00 | 1.14 | 9.83 | 175.81 | 15.91 | 307.37 | 0.3413 | 866.0 | 687.7 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 12.12 | 174.27 | 14.37 | 315.33 | 0.3466 | 651.0 | 499.8 | |
| 0.00 | 2.16 | 0.00 | 1.14 | 11.62 | 174.05 | 14.15 | 314.70 | 0.3383 | 832.0 | 712.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
