SDO HMI 2014-05-19 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.09 | 144.13 | 25.16 | 90.57 | -17.10 | 195.33 | 35.43 | 244.49 | 0.6158 | 123.9 | 71.6 | |
|
previous
or next observation for the same group /

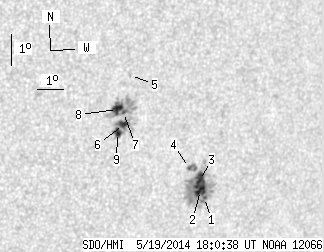

back to the solar disc SDO HMI 2014-05-19 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 74.99 | 0.58 | 48.20 | -18.37 | 197.14 | 37.23 | 243.48 | 0.6440 | 552.1 | 375.8 | |
| 9.98 | -1.00 | 6.42 | -1.00 | -18.15 | 196.92 | 37.02 | 243.70 | 0.6404 | 934.4 | 999999 | |
| 9.98 | -1.00 | 6.40 | -1.00 | -17.84 | 196.80 | 36.90 | 244.10 | 0.6376 | 1004.1 | 999999 | |
| 1.17 | 6.47 | 0.74 | 4.13 | -17.44 | 196.31 | 36.41 | 244.46 | 0.6298 | 892.8 | 789.5 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -14.61 | 193.47 | 33.56 | 247.48 | 0.5813 | 700.0 | 501.7 | |
| 5.12 | 26.97 | 3.13 | 16.50 | -16.14 | 193.48 | 33.58 | 245.00 | 0.5884 | -955.4 | -481.8 | |
| 0.99 | 34.44 | 0.60 | 20.98 | -15.77 | 193.41 | 33.51 | 245.56 | 0.5857 | -970.2 | -401.4 | |
| 6.92 | -7.00 | 4.21 | -7.00 | -15.68 | 193.17 | 33.26 | 245.58 | 0.5821 | -1094.1 | 999999 | |
| 5.03 | -6.00 | 3.08 | -6.00 | -16.40 | 193.30 | 33.40 | 244.49 | 0.5873 | -871.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
