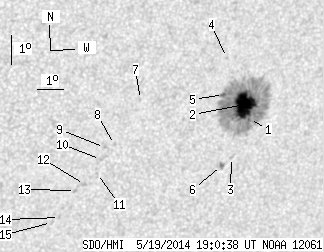

SDO HMI 2014-05-19 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.95 | 235.23 | 23.75 | 147.07 | -24.62 | 190.53 | 31.18 | 230.54 | 0.6119 | 642.6 | 316.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 218.22 | 0.51 | 136.62 | -24.97 | 191.15 | 31.80 | 230.56 | 0.6207 | 360.2 | 360.6 | |
| 34.89 | -1.00 | 21.84 | -1.00 | -24.48 | 190.81 | 31.46 | 230.98 | 0.6136 | 1171.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -26.23 | 190.81 | 31.46 | 228.58 | 0.6265 | 583.0 | 491.1 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -22.96 | 189.71 | 30.37 | 232.28 | 0.5906 | 462.0 | 540.7 | |
| 1.35 | -1.00 | 0.83 | -1.00 | -24.17 | 189.91 | 30.56 | 230.71 | 0.6016 | 831.4 | 999999 | |
| 0.90 | 3.51 | 0.57 | 2.22 | -26.51 | 190.49 | 31.14 | 227.97 | 0.6253 | 750.1 | 578.5 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -24.38 | 186.80 | 27.45 | 227.69 | 0.5699 | -585.0 | -426.2 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -25.88 | 186.18 | 26.83 | 225.01 | 0.5764 | -723.0 | -544.0 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -25.98 | 185.83 | 26.48 | 224.52 | 0.5737 | -785.0 | -639.2 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -26.38 | 185.77 | 26.42 | 223.93 | 0.5768 | -195.0 | -285.2 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -26.85 | 185.78 | 26.43 | 223.30 | 0.5811 | -661.0 | -519.3 | |
| 0.00 | 1.98 | 0.00 | 1.20 | -27.22 | 185.38 | 26.03 | 222.41 | 0.5807 | -776.0 | -626.8 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -27.43 | 185.09 | 25.74 | 221.85 | 0.5798 | -731.0 | -614.0 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -28.35 | 184.71 | 25.36 | 220.29 | 0.5850 | -712.0 | -495.9 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -28.52 | 184.45 | 25.10 | 219.81 | 0.5843 | -423.0 | -520.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
