SDO HMI 2014-05-19 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.87 | 0.00 | 6.99 | -24.85 | 159.57 | 0.22 | 184.37 | 0.3922 | -804.1 | -594.5 | |
|
previous
or next observation for the same group /

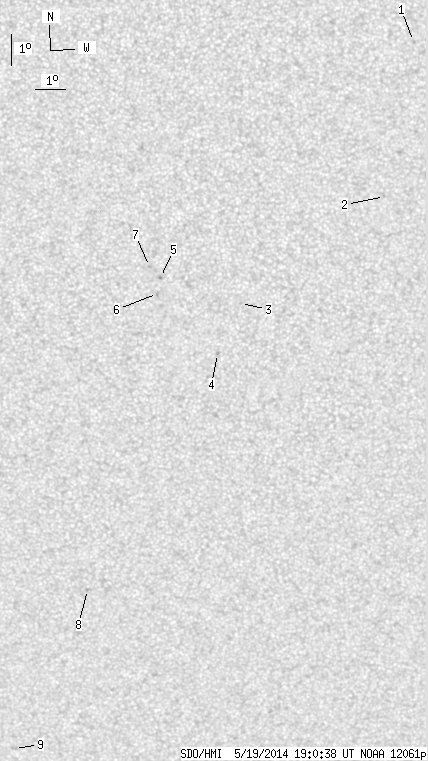

back to the solar disc SDO HMI 2014-05-19 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.69 | -12.59 | 167.62 | 8.27 | 217.73 | 0.2306 | -795.0 | -664.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -17.41 | 166.88 | 7.53 | 205.38 | 0.2930 | -765.0 | -524.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -20.82 | 162.34 | 2.99 | 188.66 | 0.3252 | -742.0 | -644.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -22.43 | 161.62 | 2.27 | 186.02 | 0.3500 | -906.0 | -735.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -19.99 | 159.74 | 0.39 | 181.20 | 0.3077 | -1017.0 | -807.0 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -20.50 | 159.65 | 0.30 | 180.88 | 0.3161 | -843.0 | -637.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -19.64 | 159.39 | 0.04 | 180.12 | 0.3018 | -837.0 | -700.9 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -30.28 | 157.20 | -2.15 | 176.07 | 0.4745 | -696.0 | -517.8 | |
| 0.00 | 2.97 | 0.00 | 1.77 | -35.90 | 154.31 | -5.04 | 172.70 | 0.5624 | -636.0 | -433.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
