SDO HMI 2014-05-19 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 6.30 | 0.41 | 4.71 | -20.23 | 113.15 | -46.20 | 115.31 | 0.7526 | 54.8 | -4.1 | |
|
previous
or next observation for the same group /

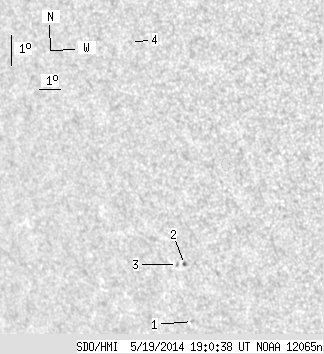

back to the solar disc SDO HMI 2014-05-19 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 1.10 | -23.50 | 112.92 | -46.43 | 119.42 | 0.7651 | -797.0 | -548.4 | |
| 0.54 | 1.80 | 0.41 | 1.35 | -21.66 | 113.34 | -46.01 | 117.26 | 0.7545 | 702.7 | 558.4 | |
| 0.00 | 1.35 | 0.00 | 1.02 | -21.65 | 113.01 | -46.33 | 117.13 | 0.7578 | 571.0 | 449.7 | |
| 0.00 | 1.71 | 0.00 | 1.24 | -14.61 | 113.27 | -46.08 | 108.03 | 0.7353 | -523.0 | -321.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
