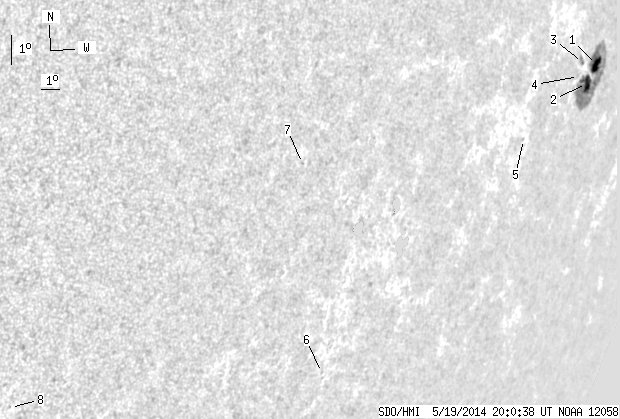

SDO HMI 2014-05-19 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.68 | 107.91 | 32.10 | 166.06 | -13.03 | 229.87 | 71.08 | 256.93 | 0.9469 | 372.7 | 134.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.17 | 97.38 | 14.46 | 152.39 | -12.59 | 230.53 | 71.74 | 257.45 | 0.9508 | 401.2 | 122.6 | |
| 10.70 | -1.00 | 16.45 | -1.00 | -13.20 | 229.96 | 71.16 | 256.78 | 0.9479 | 503.9 | 999999 | |
| 0.81 | 4.50 | 1.19 | 6.59 | -12.58 | 229.16 | 70.37 | 257.41 | 0.9434 | 503.0 | 418.1 | |
| 0.00 | 2.52 | 0.00 | 3.70 | -13.01 | 229.07 | 70.27 | 256.94 | 0.9429 | 530.0 | 504.6 | |
| 0.00 | 0.72 | 0.00 | 0.92 | -15.10 | 225.64 | 66.84 | 254.51 | 0.9228 | -275.0 | -243.4 | |
| 0.00 | 1.17 | 0.00 | 1.15 | -22.83 | 216.60 | 57.81 | 244.66 | 0.8650 | -88.0 | -180.3 | |
| 0.00 | 1.17 | 0.00 | 0.99 | -16.27 | 212.10 | 53.30 | 251.44 | 0.8141 | -480.0 | -383.4 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -24.38 | 201.22 | 42.43 | 237.77 | 0.7287 | -551.0 | -511.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
