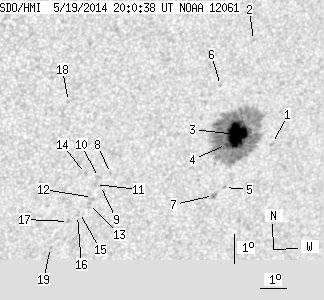

SDO HMI 2014-05-19 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.88 | 238.93 | 22.59 | 150.13 | -24.64 | 190.47 | 31.67 | 230.89 | 0.6174 | 504.3 | 305.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.92 | -24.77 | 192.28 | 33.48 | 232.08 | 0.6372 | -114.0 | -69.6 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -21.44 | 190.62 | 31.83 | 235.64 | 0.5968 | -660.0 | -596.8 | |
| 34.89 | 217.78 | 21.97 | 137.11 | -24.50 | 190.77 | 31.97 | 231.34 | 0.6193 | 1160.3 | 360.3 | |
| 0.99 | -3.00 | 0.62 | -3.00 | -24.83 | 190.47 | 31.67 | 230.65 | 0.6185 | 895.2 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.98 | -26.25 | 190.81 | 32.02 | 228.99 | 0.6324 | 612.0 | 477.2 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -22.91 | 189.72 | 30.92 | 232.79 | 0.5966 | 756.0 | 574.2 | |
| 0.00 | 3.15 | 0.00 | 2.00 | -26.53 | 190.45 | 31.66 | 228.35 | 0.6308 | 795.0 | 622.3 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -25.86 | 186.26 | 27.47 | 225.63 | 0.5827 | -785.0 | -656.3 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -26.26 | 185.98 | 27.19 | 224.82 | 0.5834 | -607.0 | -568.6 | |
| 0.00 | 1.98 | 0.00 | 1.20 | -26.00 | 185.84 | 27.04 | 225.04 | 0.5797 | -849.0 | -453.8 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -26.23 | 185.78 | 26.99 | 224.67 | 0.5812 | -486.0 | -398.1 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -26.67 | 185.78 | 26.98 | 224.08 | 0.5850 | -297.0 | -411.3 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -26.87 | 185.72 | 26.92 | 223.76 | 0.5862 | -597.0 | -464.4 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -25.88 | 185.32 | 26.52 | 224.71 | 0.5733 | -667.0 | -528.6 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -27.18 | 185.41 | 26.62 | 223.06 | 0.5860 | -690.0 | -524.0 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -27.28 | 185.36 | 26.57 | 222.87 | 0.5864 | -702.0 | -584.7 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -27.48 | 185.07 | 26.28 | 222.32 | 0.5855 | -740.0 | -629.6 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -23.52 | 184.16 | 25.36 | 226.89 | 0.5402 | -595.0 | -515.7 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -28.37 | 184.61 | 25.82 | 220.73 | 0.5895 | -456.0 | -455.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
