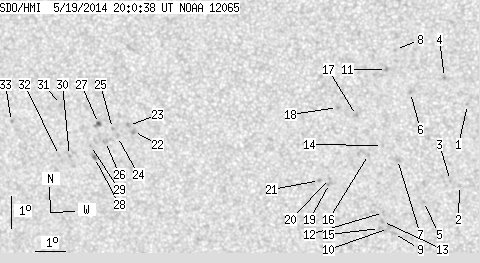

SDO HMI 2014-05-19 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 56.70 | 0.80 | 30.62 | -18.46 | 141.95 | -16.84 | 136.85 | 0.4002 | 188.1 | 73.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.37 | -17.03 | 149.02 | -9.78 | 147.75 | 0.3056 | 937.0 | 797.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -19.59 | 148.61 | -10.19 | 150.96 | 0.3449 | 631.0 | 468.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -19.43 | 148.32 | -10.47 | 150.05 | 0.3449 | 740.0 | 646.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -16.18 | 148.32 | -10.47 | 144.32 | 0.3005 | 945.0 | 822.6 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -20.09 | 147.39 | -11.41 | 148.96 | 0.3618 | 709.0 | 549.4 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -16.64 | 147.20 | -11.59 | 142.50 | 0.3177 | 912.0 | 706.8 | |
| 0.00 | 2.97 | 0.00 | 1.57 | -18.75 | 146.63 | -12.16 | 145.15 | 0.3505 | 887.0 | 643.8 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -15.29 | 146.80 | -11.99 | 138.70 | 0.3051 | 691.0 | 514.1 | |
| 0.00 | 2.07 | 0.00 | 1.11 | -21.10 | 146.31 | -12.48 | 148.23 | 0.3846 | 738.0 | 602.3 | |
| 0.00 | 4.32 | 0.00 | 2.31 | -20.94 | 146.16 | -12.63 | 147.68 | 0.3838 | 727.0 | 619.1 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -15.91 | 146.47 | -12.32 | 139.32 | 0.3162 | 952.0 | 758.6 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -20.43 | 146.04 | -12.76 | 146.66 | 0.3781 | 736.0 | 729.3 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -20.71 | 145.98 | -12.81 | 146.98 | 0.3823 | 814.0 | 743.5 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -18.30 | 146.18 | -12.62 | 143.37 | 0.3491 | 954.0 | 790.0 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -20.94 | 145.86 | -12.93 | 147.08 | 0.3863 | 645.0 | 558.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -18.58 | 145.70 | -13.10 | 142.87 | 0.3574 | 760.0 | 624.4 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -17.35 | 145.40 | -13.40 | 139.95 | 0.3452 | 953.0 | 789.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -17.09 | 144.80 | -14.00 | 138.23 | 0.3486 | 811.0 | 703.6 | |
| 0.00 | 2.25 | 0.00 | 1.20 | -19.49 | 144.33 | -14.46 | 141.79 | 0.3823 | 779.0 | 664.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.33 | 144.34 | -14.45 | 141.54 | 0.3802 | 877.0 | 674.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -19.39 | 144.01 | -14.79 | 141.02 | 0.3844 | 679.0 | 592.2 | |
| 0.00 | 2.88 | 0.00 | 1.58 | -17.76 | 137.93 | -20.87 | 128.67 | 0.4363 | -893.0 | -756.3 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -17.57 | 137.78 | -21.01 | 128.13 | 0.4364 | -912.0 | -799.3 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -17.91 | 137.36 | -21.43 | 128.25 | 0.4446 | -827.0 | -709.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -17.66 | 137.22 | -21.57 | 127.61 | 0.4441 | -826.0 | -729.2 | |
| 0.00 | 2.88 | 0.00 | 1.60 | -18.06 | 136.93 | -21.86 | 128.01 | 0.4512 | -697.0 | -678.6 | |
| 0.90 | 3.87 | 0.50 | 2.14 | -17.49 | 136.76 | -22.03 | 126.76 | 0.4484 | -1030.4 | -792.5 | |
| 0.54 | 2.52 | 0.30 | 1.40 | -18.56 | 136.48 | -22.31 | 128.40 | 0.4611 | -841.0 | -742.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -18.18 | 136.40 | -22.40 | 127.61 | 0.4588 | -785.0 | -706.6 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -18.49 | 135.63 | -23.17 | 127.29 | 0.4709 | -815.0 | -645.8 | |
| 0.00 | 2.97 | 0.00 | 1.65 | -16.88 | 135.57 | -23.22 | 124.27 | 0.4585 | -792.0 | -524.9 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -18.48 | 135.28 | -23.52 | 126.90 | 0.4752 | -577.0 | -558.3 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -17.38 | 133.76 | -25.03 | 123.39 | 0.4856 | -757.0 | -641.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
