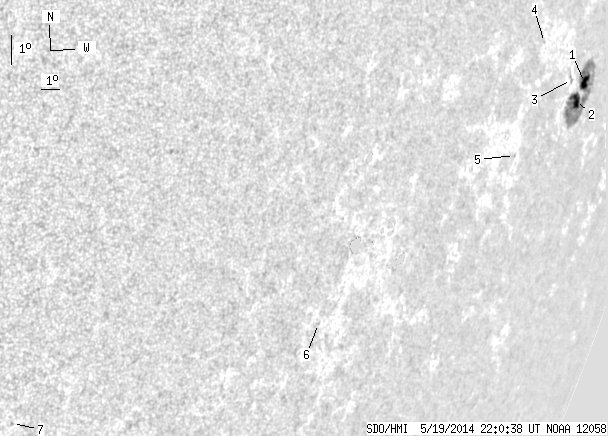

SDO HMI 2014-05-19 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.34 | 97.94 | 30.24 | 159.87 | -13.04 | 229.86 | 72.18 | 256.95 | 0.9527 | 338.6 | 116.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-19 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.27 | 91.10 | 13.85 | 151.23 | -12.62 | 230.49 | 72.81 | 257.45 | 0.9563 | 382.1 | 121.1 | |
| 10.07 | -1.00 | 16.39 | -1.00 | -13.19 | 229.97 | 72.28 | 256.83 | 0.9538 | 465.6 | 999999 | |
| 0.00 | 2.61 | 0.00 | 4.04 | -12.57 | 229.12 | 71.44 | 257.46 | 0.9493 | 560.0 | 451.7 | |
| 0.00 | 0.90 | 0.00 | 1.21 | -11.52 | 226.04 | 68.35 | 258.45 | 0.9311 | -372.0 | -322.3 | |
| 0.00 | 1.17 | 0.00 | 1.56 | -15.06 | 225.59 | 67.90 | 254.62 | 0.9295 | -226.0 | -177.6 | |
| 0.00 | 1.08 | 0.00 | 1.04 | -20.72 | 215.33 | 57.65 | 247.03 | 0.8602 | -404.0 | -398.4 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -24.35 | 201.20 | 43.52 | 238.30 | 0.7396 | -548.0 | -438.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
